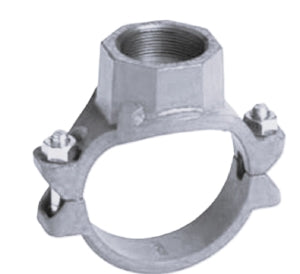

VICTAULIC CD44920GE0 Female Mechanical Tee 4 x 3 in Groove x FNPT

Product Description

The VICTAULIC CD44920GE0 is a female mechanical tee that facilitates a branch connection in piping systems. Its nominal size is four inches by three inches, with groove x FNPT end style. Manufactured from ductile iron and featuring a galvanized finish, this tee ensures durability in various applications.

• Fitting type: Female Mechanical Tee with Groove x FNPT end style.
• Constructed from ductile iron with galvanized finish and carbon steel bolts.
• Operating temperature range: -30 to 230 deg F, with a pressure rating of 500 psi.

Product Highlights

This tee is part of the 920 series and is engineered for reliable performance in challenging environments.

Product Information

Standard Information

• Fitting/Connector Type: Mechanical Tee
• Type: Female

Technical Specifications

• Nominal Size: 4 x 3 inches
• End Style: Groove x FNPT
• Material: Ductile Iron
• Finish: Galvanized
• Bolt Material: Carbon Steel
• Clamp Material: Ductile Iron
• Connection Type: FNPT
• Dimensions: 7.73 inches in length x 5.12 inches in width
• Gasket Material: Grade E EPDM
• Hole Diameter: 3-1/2 inches
• Pressure Rating: 500 psi
• Series: 920
• Temperature Rating: -30 to 230 deg F
