Product Description

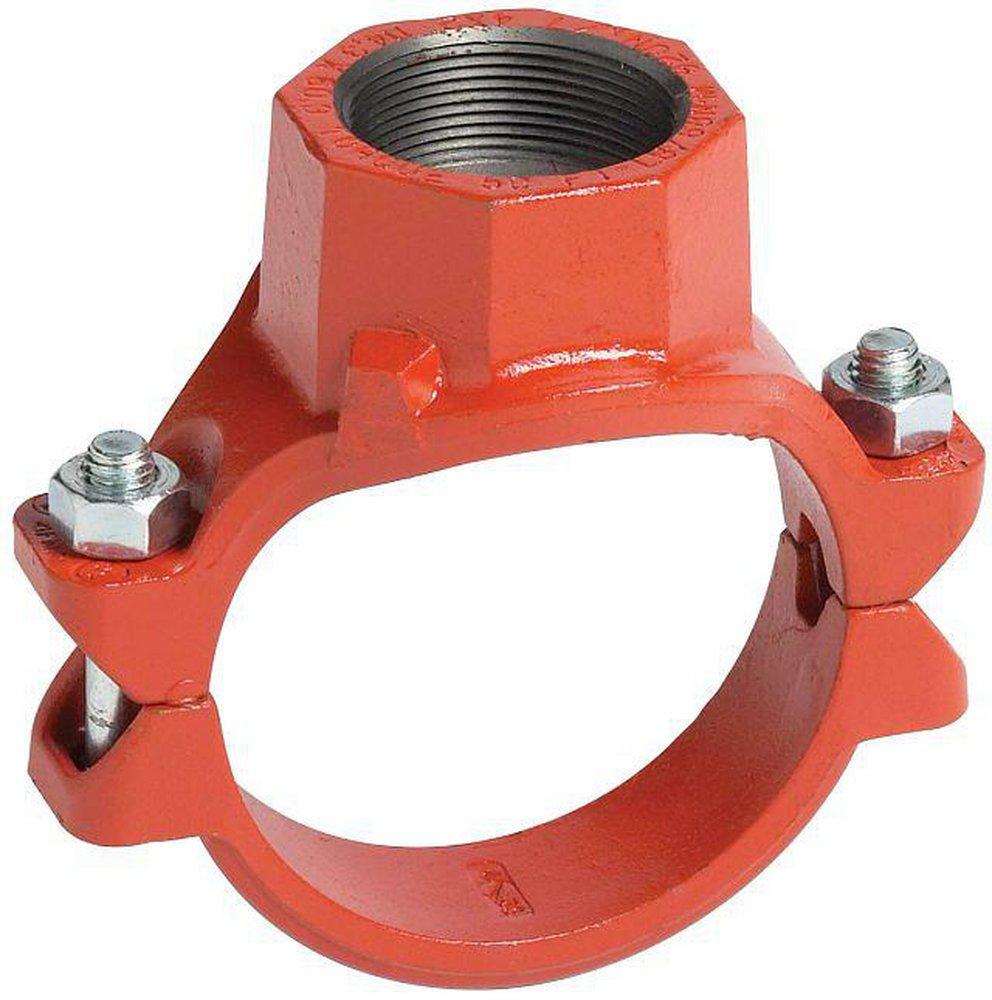

The Victaulic CD35920PE1 is a mechanical tee made from ductile iron. This product is designed to facilitate a direct branch connection at any point where a hole can be cut into the piping system. It is suitable for both fire protection and general piping applications.
- Pressure rating up to 500 psi
- Compatible with grooved or female threaded outlets
- Painted for protection and aesthetics
Product Highlights
This Victaulic mechanical tee serves as a crucial component in plumbing and fire protection systems, enabling effective branching without compromising the integrity of existing lines.
Product Information
Standard Information
-
Brand: Victaulic
-
MPN: CD35920PE1
Technical Specifications
-
Connection Size: 4 x 2-1/2 inches
-
Finish: Orange Enamel
-
Hole Diameter: 2-3/4 inches
-
Item Name: Mechanical-T Coupling with 2-1/2 inch Grooved Bolted Branch Outlet and Grade E EPDM Gasket
-
Length: 7.34 inches
-
Material Specifications: ASTM A536, Grade 65-45-12
-
Material: Ductile Iron
-
Model: 920
-
Pressure Rating: 500 psi
-
Temperature Rating: -30 to 230 degrees Fahrenheit
