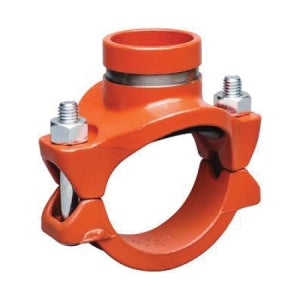

Victaulic CD2992NPE1 Mechanical-T Coupling 4 x 2 in Grooved Branch Outlet Grade E EPDM Gasket

Product Description

The Victaulic CD2992NPE1 is a mechanical-T coupling designed for fire protection applications. This fitting allows for a direct branch connection where a hole can be cut in the pipe. Its oversize hole receives a locating collar, ensuring a secure connection. The pressure responsive gasket forms a seal on the pipe's outside diameter, promoting reliability and efficiency.

• Provides a branch connection at any cut-in location on the pipe
• Features a pressure responsive EPDM gasket
• Available in grooved or female threaded outlet options

Product Highlights

The coupling is made of ductile iron and has an orange enamel finish, ensuring durability. It is compliant with several industry standards.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: CD2992NPE1

Technical Specifications

• Connection Size: 4 x 2 in
• Finish: Orange Enamel
• Hole Diameter: 2-1/2 in
• Length: 7.01 in
• Material: Ductile Iron
• Model: 920N
• Pressure Rating: 500 psi
• Temperature Rating: -30 to 230 deg F
