Victaulic CD2592NPE1 Mechanical-T Coupling with 1-1/2 in Grooved Bolted Branch Outlet and Grade E EPDM Gasket 4 x 1-1/2 in

Product Description

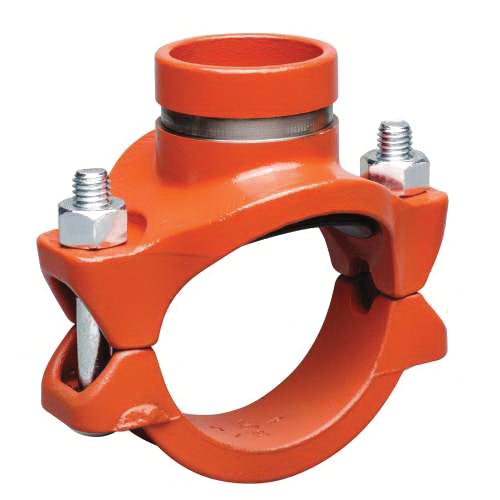

The Victaulic CD2592NPE1 is a mechanical-T coupling designed for use in fire protection systems. It features a direct branch connection at a cut-in pipe location and includes a 1-1/2 inch grooved bolted branch outlet. This coupling is made of ductile iron with an orange enamel finish and utilizes a grade E EPDM gasket for sealing.

• Direct branch connection at any location where a hole can be cut in the pipe.
• Pressure responsive gasket seals on pipe outside diameter.
• Made from ductile iron and complies with UL, ULC standards.

Product Highlights

This coupling allows for cross-type connections using upper housings of the same style. It is available with either a grooved or female threaded outlet and is supplied painted with plated bolts.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Size: 4 x 1-1/2 in
• Finish: Orange Enamel
• Hole Diameter: 2 in
• Length: 7.01 in
• Material: Ductile Iron
• Model: 920N
• Pressure Rating: 500 psi
• Temperature Rating: -30 to 230 deg F
