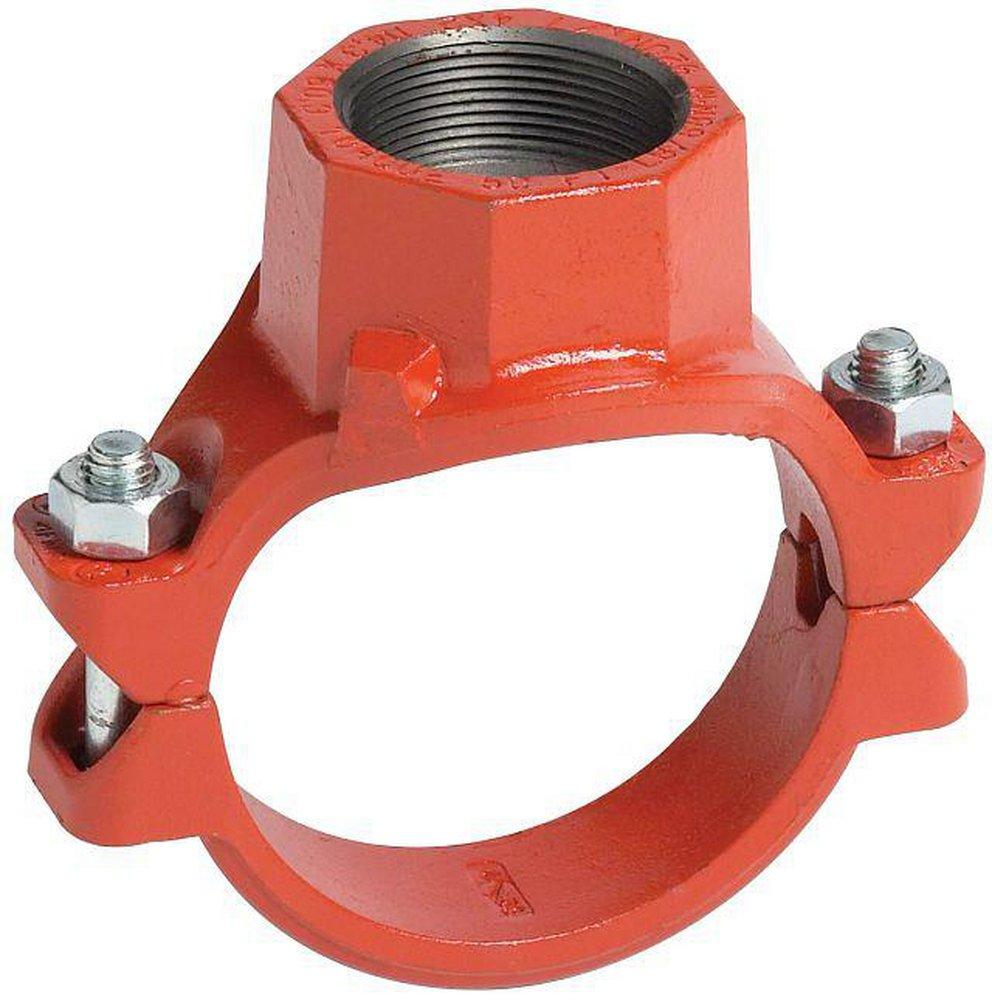

Victaulic CD2092NPE0 Style 920 4 x 3/4 in FIPS Domestic Orange Enamel Ductile Iron Tee

Product Description

The Victaulic Style 920 Tee with MPN CD2092NPE0 provides a reliable connection for various piping systems. It features a durable ductile iron construction with an orange enamel finish, designed for optimal performance in both fire protection and general plumbing applications.

• Connection Size: Four inches x three-quarter inch.
• Pressure Rating: Suitable for up to 500 psi.
• Temperature Rating: Operates effectively from -30 to 230 degrees Fahrenheit.

Product Highlights

This mechanical tee is available for direct branch connections where cutting a hole in the pipe is feasible. Its versatility makes it suitable for both commercial and residential uses.

Product Information

Standard Information

• Brand: Victaulic
• Model: 920N

Technical Specifications

• Connection Type: FIPS x FIPS x FIPS
• Material: Ductile Iron
• Finish: Orange Enamel
• Hole Diameter: One and one-half inches
• Length: Seven point zero one inches
• Material Specifications: ASTM A536, Grade 65-45-12
• Pressure Rating: 500 psi
• Temperature Rating: -30 to 230 degrees Fahrenheit
