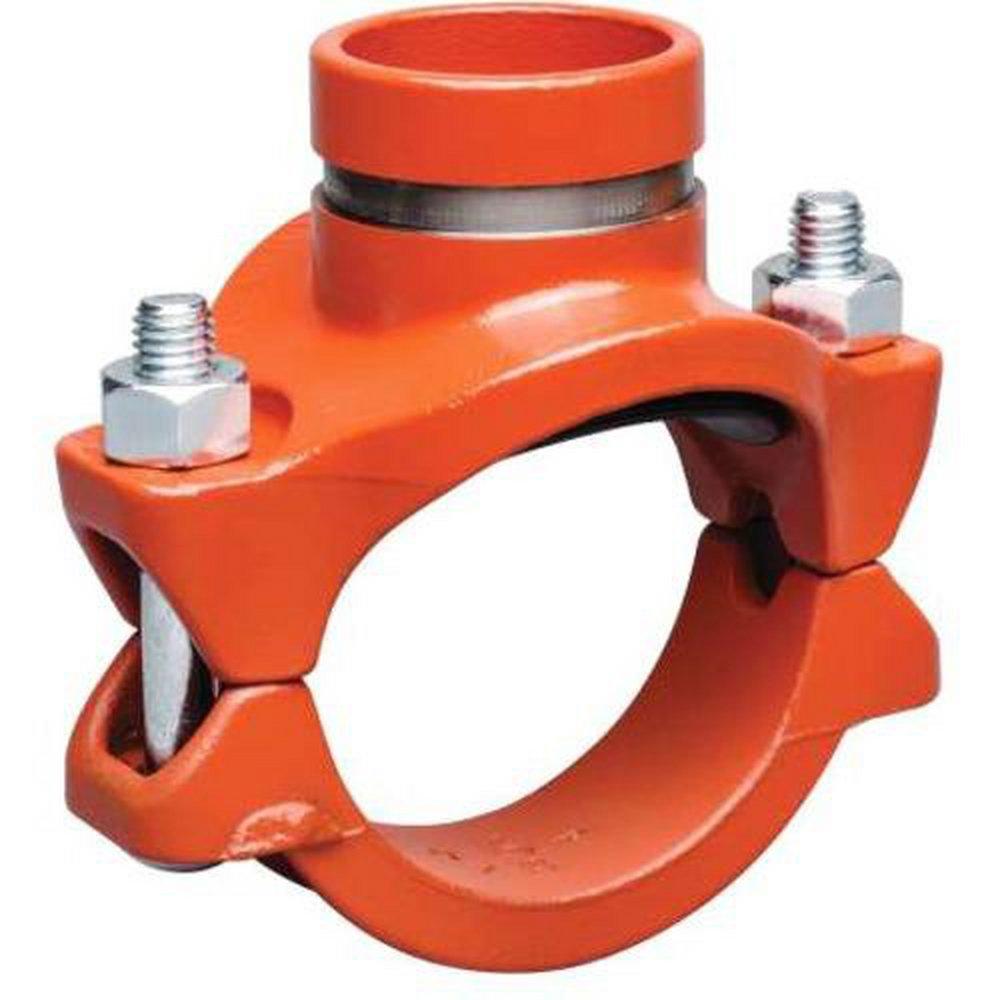

Victaulic CC9092NPE1 FireLock™ Style 920 3-1/2 x 3-1/2 x 2 in Grooved Domestic Painted Ductile Iron Mechanical Tee

Product Description

The Victaulic CC9092NPE1 is a FireLock™ Style 920 mechanical tee designed for pipe fitting applications. This product provides a reliable way to create a branch connection in piping systems. It features a grooved domestic painted ductile iron construction for durability.

• Provides branch connection at any location where a hole is cut in the pipe.
• Pressure rated up to five hundred psi.
• Compatible with various sizes from two to eight inches.

Product Highlights

Engineered for fire protection, this tee is ideal for both residential and commercial plumbing systems.

Product Information

Standard Information

• Brand: Victaulic
• MPN: CC9092NPE1

Technical Specifications

• Connection Size: 3-1/2 x 2 in
• Finish: Orange Enamel
• Hole Diameter: 2-1/2 in
• Item Name: Mechanical-T Coupling with 2 in Grooved Bolted Branch Outlet and Grade E EPDM Gasket
• Length: 6.72 in
• Material Specifications: ASTM A536, Grade 65-45-12
• Material: Ductile Iron
• Model: 920N
• Pressure Rating: 500 psi
• Temperature Rating: -30 to 230 deg F
