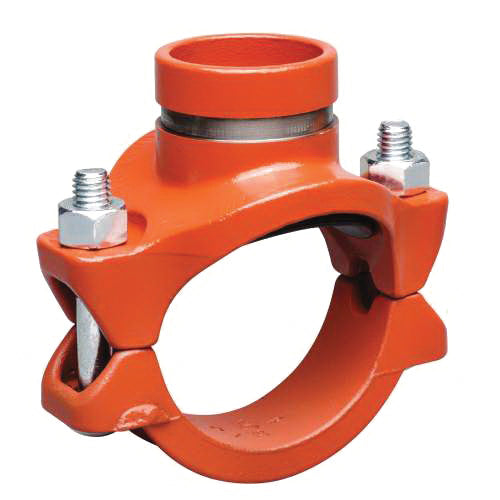

Victaulic CC4092NPE1 Mechanical-T Coupling with 1-1/2 in Grooved Bolted Branch Outlet

Product Description

The Victaulic CC4092NPE1 is a Mechanical-T Coupling designed for effective branch connections in piping systems. This fitting features a one and a half inch grooved bolted branch outlet and is constructed from ductile iron with an orange enamel finish. Ideal for fire protection applications, it allows for direct connections where pipes are cut. The installation involves creating an oversize hole for securing an outlet using a collar. This coupling ensures a reliable seal through its pressure-responsive gasket.

• 3 x 1-1/2 inch connection size
• Pressure rating of 500 psi
• Temperature rating from negative thirty to two hundred thirty degrees Fahrenheit

Product Highlights

Engineered for direct branch connections. Suitable for mechanical tees where a specialization in connecting two different piping sizes is required.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Model: 920N
• Finish: Orange Enamel
• Length: 6.15 inches
• Material: Ductile Iron
• Hole Diameter: 2 inches
• Material Specifications: ASTM A536, Grade 65-45-12
• Standards/Certifications: UL, ULC listed, FM, LPCB approved, VNIPO
