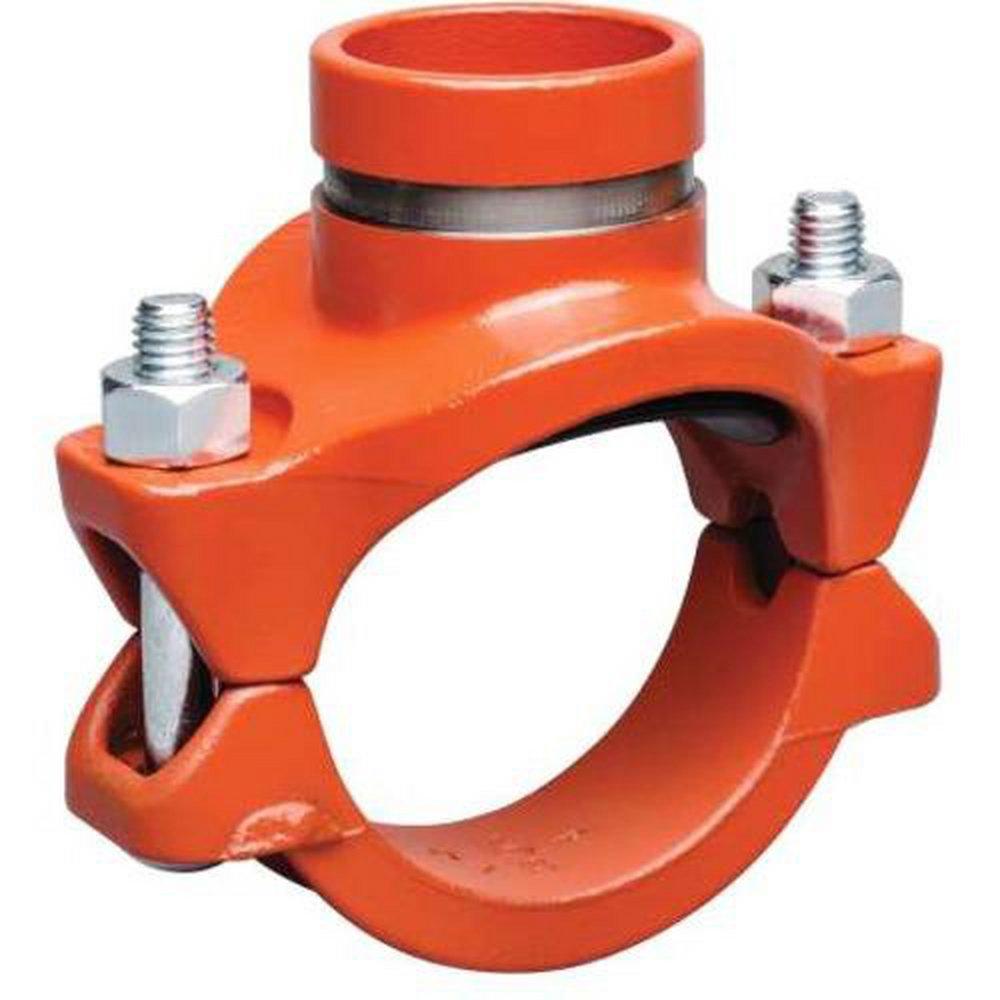

Victaulic CC3992NPE3 FireLock Style 920 3 x 3 x 1-1/4 in. Grooved Domestic Painted Ductile Iron Mechanical Tee

Product Description

The Victaulic CC3992NPE3 is a mechanical tee designed for pipe fittings. This product features a three inch by one-and-one-fourth inch grooved outlet. It is made from ductile iron with an orange enamel finish. The mechanical tee provides a direct branch connection wherever a hole can be made in the pipe.

• Pressure rated up to 500 psi.
• Compatible with both grooved and female threaded connections.
• Standard sizes range from two to eight inches.

Product Highlights

The Victaulic CC3992NPE3 supports robust plumbing solutions by allowing for easy branch connections in pipe systems.

Product Information

Standard Information

• Brand: Victaulic
• Type: Mechanical Tee

Technical Specifications

• Connection Size: 3 x 1-1/4 in
• Finish: Orange Enamel
• Hole Diameter: 1-3/4 in
• Length: 6.15 in
• Material: Ductile Iron
• Model: 920N
• Pressure Rating: 500 psi
• Temperature Rating: -30 to 230 deg F
• Material Specifications: ASTM A536, Grade 65-45-12
• Standards/Certifications: UL, ULC listed, FM, LPCB approved, VNIPO
