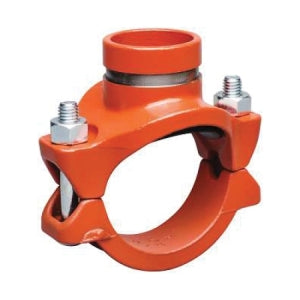

Victaulic CC0392NGE0 920N Bolted Branch Outlet 2-1/2 x 1-1/2 in FNPT Connection

Product Description

The Victaulic CC0392NGE0 920N Bolted Branch Outlet provides an effective means to create a branch connection in pipes. This product is designed for nominal sizes of two and a half inches by one and a half inches with a FNPT connection. The outlet is made from ductile iron and features a hot dipped galvanized finish for durability.

• Direct branch connection at any cut point in the pipe
• Pressure rated up to five hundred psi
• Compatible with Schedule 10 and Schedule 40/STD pipes

Product Highlights

Reliable performance in piping systems with easy installation.

Product Information

Standard Information

• Part Number: CC0392NGE0
• Brand: Victaulic

Technical Specifications

• Material: Ductile Iron
• Connection Type: FNPT
• Pressure Rating: 500 psi
• Temperature Range: -30 to 230 degrees F
• Dimensions: 6.26 inches wide x 3.25 inches deep
• Gasket Material: Grade E EPDM
