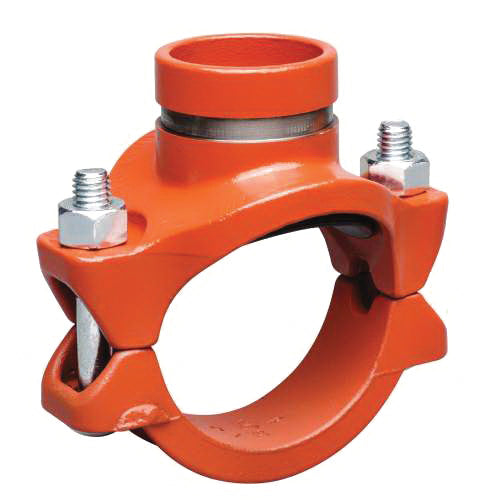

Victaulic CC0192NPE1 Mechanical-T Coupling 500 psi (2-1/2 x 1-1/4 in) Replacement MPN

Product Description

The Victaulic CC0192NPE1 is a mechanical-T coupling designed to provide a direct branch connection in piping systems. This model features a connection size of two and one-half by one and one-quarter inches, making it suitable for a variety of applications in fire protection systems. The coupling includes a grooved bolted branch outlet and a grade E EPDM gasket.

• Provides a direct branch connection at any cut pipe location
• Construction includes ductile iron with an orange enamel finish
• Rated to operate at up to 500 psi

Product Highlights

The mechanical-T coupling allows for easy installation and a reliable seal, thanks to its pressure responsive gasket. Its design supports cross-type connections, enhancing versatility in system configurations.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Size: 2-1/2 x 1-1/4 in
• Finish: Orange Enamel
• Hole Diameter: 1-3/4 in
• Length: 6.29 in
• Material: Ductile Iron
• Model: 920N
• Pressure Rating: 500 psi
• Temperature Rating: -30 to 230 deg F
