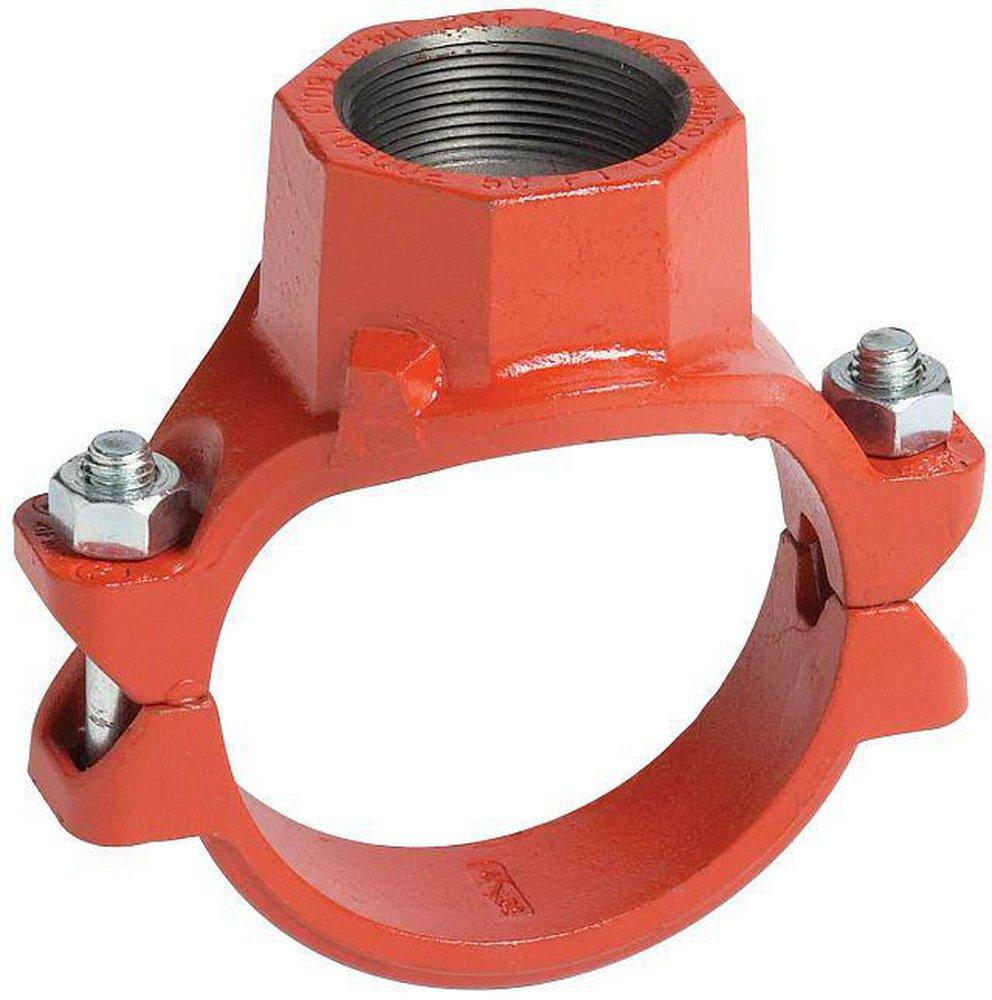

Victaulic CB9792NPE0 FireLock Style 920 2-1/2 x 2-1/2 x 3/4 in FIPS Domestic Painted Ductile Iron Mechanical Tee

Product Description

The Victaulic CB9792NPE0 is a mechanical tee designed for fire protection applications. It features a size of two and one half inches by three fourths of an inch and is constructed from durable ductile iron. This tee is useful for providing connections in piping systems where a direct branch connection is necessary.

• Constructed from ductile iron for strength and reliability.
• Rated for pressures up to five hundred psi.
• Compatible with various piping systems and configurations.

Product Highlights

This product is suitable for both domestic and commercial fire protection installations.

Product Information

Standard Information

• Brand: Victaulic
• MPN: CB9792NPE0

Technical Specifications

• Connection Size: 2-1/2 x 3/4 in
• Finish: Orange Enamel
• Hole Diameter: 1-1/2 in
• Length: 5.64 in
• Material Specifications: ASTM A536, Grade 65-45-12
• Material: Ductile Iron
• Model: 920N
• Pressure Rating: 500 psi
• Temperature Rating: -30 to 230 deg F
