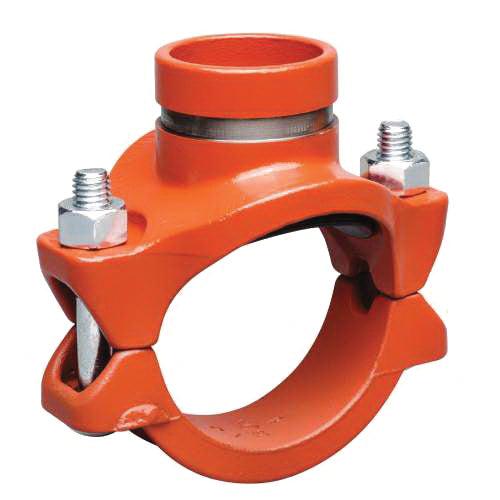

Victaulic CB6792NPE1 Mechanical-T Coupling with 1-1/2 in Grooved Bolted Branch Outlet and Grade E EPDM Gasket

Product Description

The Victaulic CB6792NPE1 is a mechanical-T coupling designed for direct branch connections in piping. It features a grooved bolted branch outlet with a diameter of one and one-half inches. This coupling utilizes a Grade E EPDM gasket, which provides an effective seal on the outside diameter of the pipe. It is constructed from ductile iron and finished with orange enamel for durability.

• Mechanical-T outlet allows for branch connections at any location.
• Utilizes a pressure responsive gasket for a secure seal.
• Certified to UL, ULC, FM, LPCB standards.

Product Highlights

Designed for reliability and efficiency, this coupling connects pipes directly where holes can be cut. It supports cross-type connections using two upper housings of similar style and size.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Size: 2 x 1-1/2 in
• Finish: Orange Enamel
• Hole Diameter: 1-3/4 in
• Length: 5.35 in
• Material: Ductile Iron
• Model: 920N
• Pressure Rating: 500 psi
• Temperature Rating: -30 to 230 deg F
• Material Specifications: ASTM A536, Grade 65-45-12
• Standards/Certifications: UL, ULC listed, FM, LPCB approved, VNIPO
