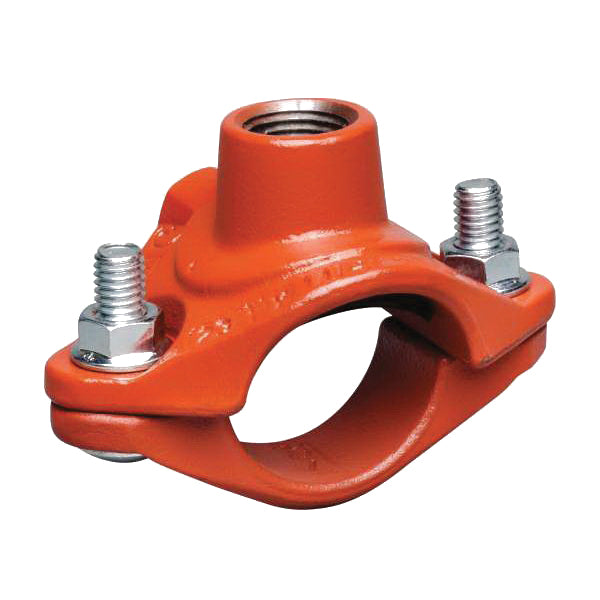

Victaulic CB59922YE0 FireLock 922 Ductile Iron Outlet Tee with 3/4 in FPT Branch Outlet

Product Description

The Victaulic CB59922YE0 is a reliable fire protection fitting designed to enhance the safety of your systems. This model is made of ductile iron and features a 3/4 inch FPT branch outlet. It is suitable for a variety of fire protection applications, providing excellent performance against pressure challenges.

• Constructed from durable ductile iron.
• Connects with a 3/4 inch FPT branch outlet.
• Rated for up to 300 psi pressure applications.

Product Highlights

This grooved outlet tee comes with a Grade E EPDM Type-A gasket, ensuring a robust seal for reliable connections in fire protection systems.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: VI922.2.34

Technical Specifications

• Connection Size: 2 x 3/4 in
• Finish: Orange Enamel
• Model: 922
• Length: 4.6 in
• Material: Ductile Iron
• Outside Diameter: 2-3/8 x 1.05 in
• Pressure Rating: 300 psi
• Material Specifications: ASTM A536, Grade 65-45-12
