Victaulic CB29922YE0 FireLock Style 922 Mechanical Joint Fire Protection

Product Description

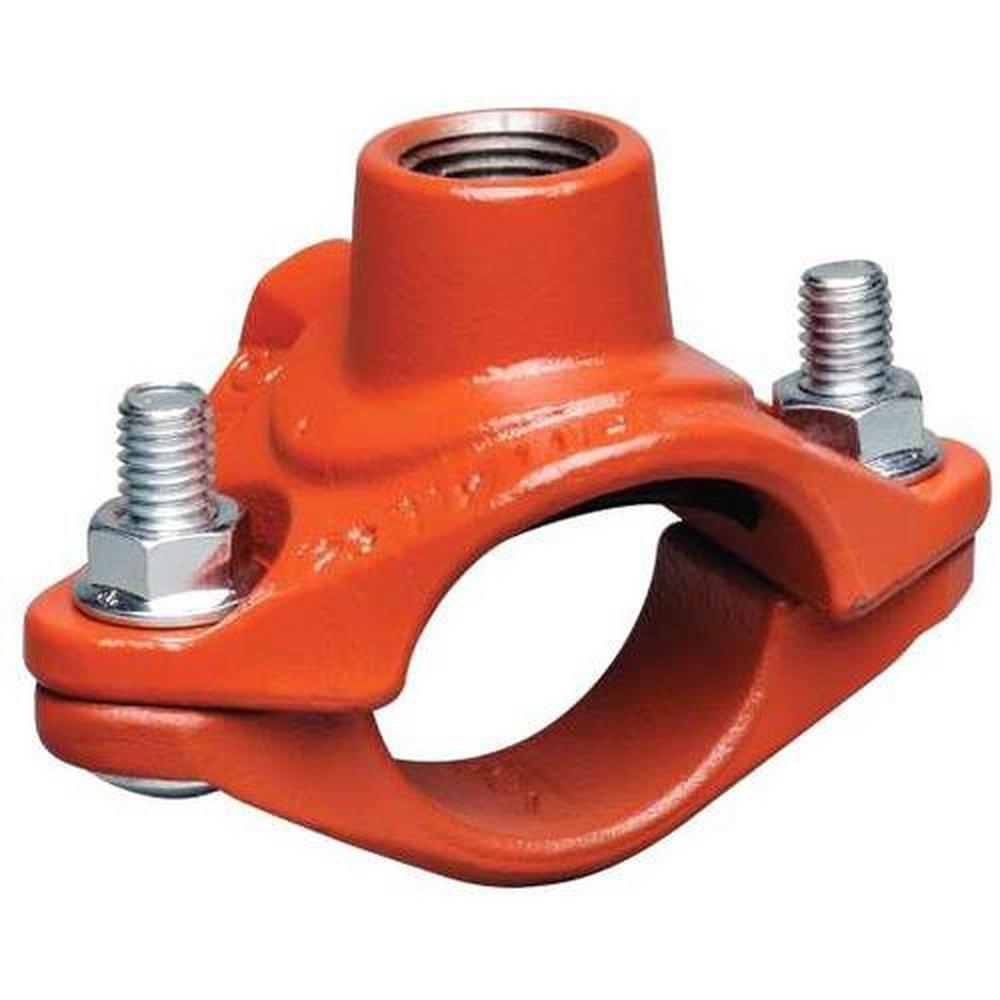

Victaulic offers the CB29922YE0 FireLock Style 922, a mechanical joint tee made from ductile iron. This tee is designed for fire protection applications, providing a reliable branch connection with one inch female threaded outlet. It is suitable for various piping systems and is available in sizes from one and a quarter inches to two and a half inches.

• Direct branch connection at any pipe cut location.
• Pressure rating of three hundred psi.
• Compliant with ASTM A536 material standards.

Product Highlights

This mechanical joint tee allows safe and efficient connections in fire protection systems, ensuring performance under high pressure and compliance with industry standards.

Product Information

Standard Information

• Brand: Victaulic
• Sub Brand: FireLock

Technical Specifications

• Connection Size: 1-1/2 x 1 in
• Outside Diameter: 1.9 x 1.315 in
• Material: Ductile Iron
• Pressure Rating: 300 psi
• Model: 922
• Length: 4.08 in
• Finish: Orange Enamel
• Material Specifications: ASTM A536, Grade 65-45-12
