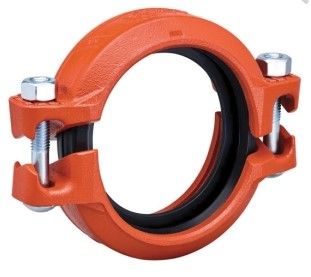

Victaulic C024107PE0 107V Orange Enamel Painted Ductile Iron Pre-Assembled Rigid Coupling With Grade E Gasket, 2-1/2 In, Grooved

Product Description

The Victaulic C024107PE0 is a QuickVic Rigid Coupling designed for pipe joining. This coupling fits two and a half inch nominal ductile iron pipe and is rated for up to seven hundred fifty psi. It features a durable orange enamel coating and a Grade E gasket, making it suitable for various piping applications.

• Shift limiting slant pad provides rigidity
• Pressure rated up to 750 PSI/5171 KPA/52 BAR
• Accommodates pressures from full vacuum to 750 psi

Product Highlights

This coupling is engineered for strength and reliability. It is easy to install and designed to restrict axial or angular movement. Ideal for use with carbon steel and stainless steel pipes.

Product Information

Standard Information

• Brand: Victaulic
• MPN: C024107PE0

Technical Specifications

• Size: 2-1/2 in
• Material: Ductile Iron
• Color: Orange Enamel
• Maximum Pressure Rating: 750 PSI
• Temperature Range: -30 to +250 deg F
• Item Weight: 3.23 lb
• Nominal Size: 2-1/2 in
• Specifications Met: ASME B31.1, B31.9, ASTM A536, Grade 65-45-12
