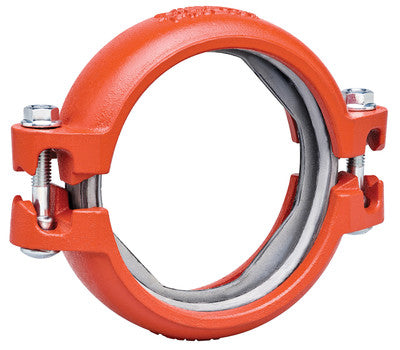

Victaulic C01409VPE0 Firelock 1-1/2 in. Ductile Iron Installation-Ready Rigid Coupling

Product Description

The Victaulic C01409VPE0 Firelock is a 1-1/2 inch ductile iron installation-ready rigid coupling. This coupling is specifically designed for use in sprinkler piping systems, ensuring a secure and rigid pipe joint. It is compatible with Schedule 10, Schedule 40, and Specialty Carbon Steel Pipe. This product meets a range of essential standards, including ASTM A 536, Grade 65-45-12, cULus Listed, and FM Approved.

• Provides a rigid pipe joint in sprinkler piping systems
• Compatible with various carbon steel pipe schedules
• Maximum working pressure rated at 365 PSI

Product Highlights

The Victaulic C01409VPE0 ensures strong joint integrity and compliance with industry standards, making it suitable for various fire protection applications.

Product Information

Standard Information

• Catalog Number: C01409VPE0
• UPC: 195150566992

Technical Specifications

• Bolt Size: (2) 3/8 x 2 inches
• Compatible With: Schedule 10, Schedule 40, or Specialty Carbon Steel Pipe
• Housing Material: Ductile Iron
• Maximum Working Pressure: 365 PSI
• Outside Diameter: 1.9 inches
• Product Type: Rigid Coupling
• Selling Size: 1-1/2 inches
• Series/Model: FireLock Installation-Ready
• Specifications Met: ASTM A 536, Grade 65-45-12; cULus Listed, FM Approved
• Style: 009V
