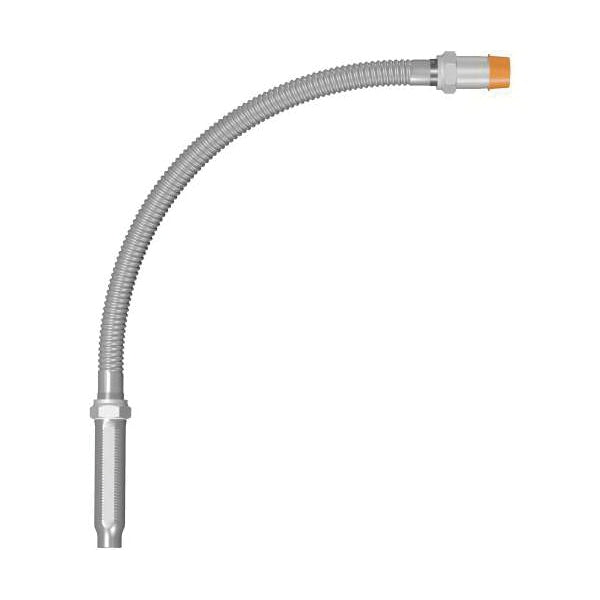

Victaulic A48HAQFBUE VicFlex AH5 304 Stainless Steel Unbraided Corrugated Flexible Drop Hose 1/2 in NPT 48 in L

Product Description

The Victaulic A48HAQFBUE is a high-quality VicFlex AH5 corrugated flexible drop hose made from 304 stainless steel. This flexible hose is designed for use in fire protection systems, providing reliable connections in suspended ceiling grids.

• Utilizes flexible stainless steel for superior performance.
• Designed for sprinkler installation on suspended ceilings.
• Connects with a 1/2 inch NPT size.

Product Highlights

This corrugated flexible drop hose offers a minimum bend radius of four inches. It allows installation that is up to ten times faster than traditional threaded black pipe, removing the need for messy tools. The hose has a pressure rating of one hundred seventy-five psi and operates effectively at temperatures up to two hundred twenty-five degrees Fahrenheit.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Size: 1/2 in
• Connection Type: NPT
• Item Name: Corrugated Flexible Drop Hose
• Length: 48 in
• Material: 304 Stainless Steel
• Model: AH5
• Pressure Rating: 175 psi
• Temperature Rating: 225 deg F
• Sub Brand: VicFlex
• Type: Unbraided
• Standards/Certifications: cULus listed
• Applications: For style AB7 VicFlex bracket and straight 5.5 in reducer
