Victaulic A48HAQBP2C Braided Hose Vicflex AH2-CC 1/2 x 48 Inch

Product Description

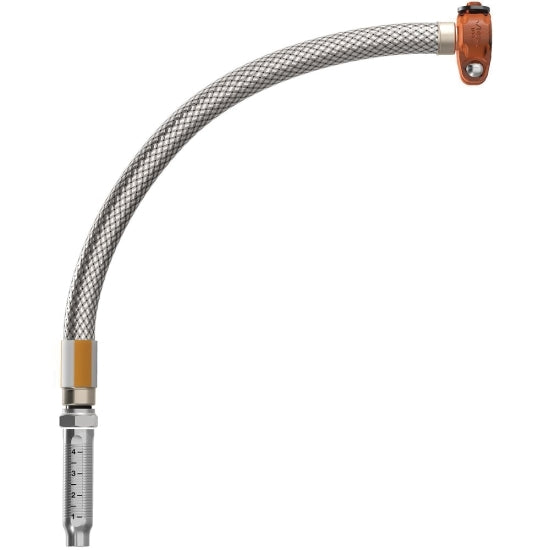

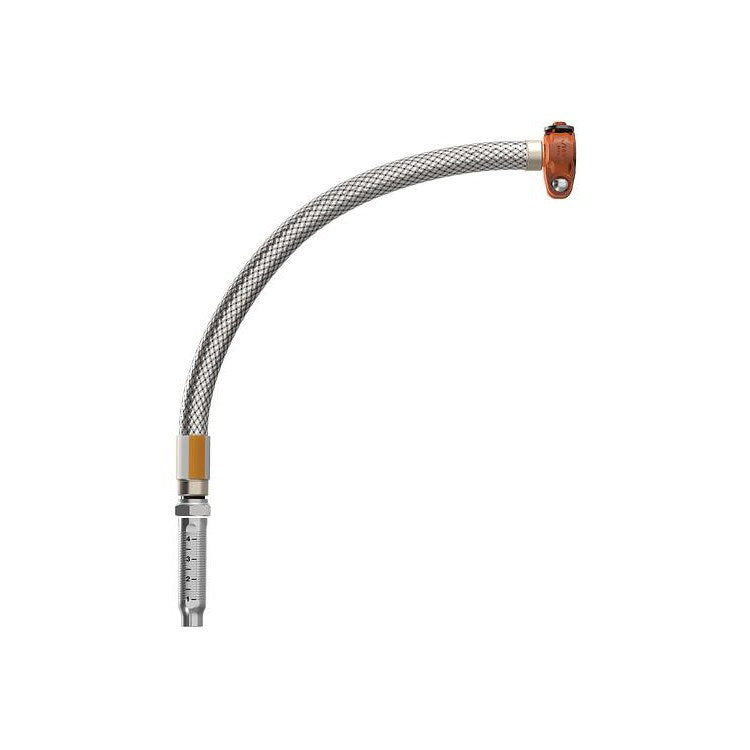

The VICTAULIC A48HAQBP2C braided hose is a Vicflex AH2-CC stainless steel braided flexible drop hose. It features a 5.75 in reducer and a 1/2 in NPT connection. The hose assembly is 48 inches in length and is pressure rated up to 232 PSI.

• VicFlex AH2-CC
• Stainless Steel Braided
• Flexible Drop Hose

Product Highlights

This braided flexible hose assembly features captured coupling technology for fast and safe installation and is 100% kink-resistant.

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: A48HAQBP2C

Technical Specifications

• Brand: Victaulic
• Reducer: 5.75 in
• Size: 1/2 in
• Connection: NPT
• Length: 48 in
• Material: 300 Stainless Steel
• Sub Brand: VicFlex™
• Item Name: Braided Flexible Hose Assembly With Painted Coupling
• Nominal Size: 1/2 IN
• Series/Model: Series AH2-CC
• Industry Standards: C/US UL Listed, FM Approved
• Maximum Pressure: 232 PSI
• Temperature Rating: 225 DEG F
• MPN: A48HAQBP2C
• Fitting Size 1: 1/2 in.
• Fitting Size 2: 1 in.
• Fitting Sizes: 1/2 in. x 1 in.
• Material Type: 300;EPDM;Polyethylene
• Pressure - High: 200 psi
• Specifications - FM Approved: Yes
• Specifications - UL Listed: Yes
• Style Name: VicFlex Series AH2CC
• Fitting Type: Reducing
• Product Type: Fire Hose & Accessories
