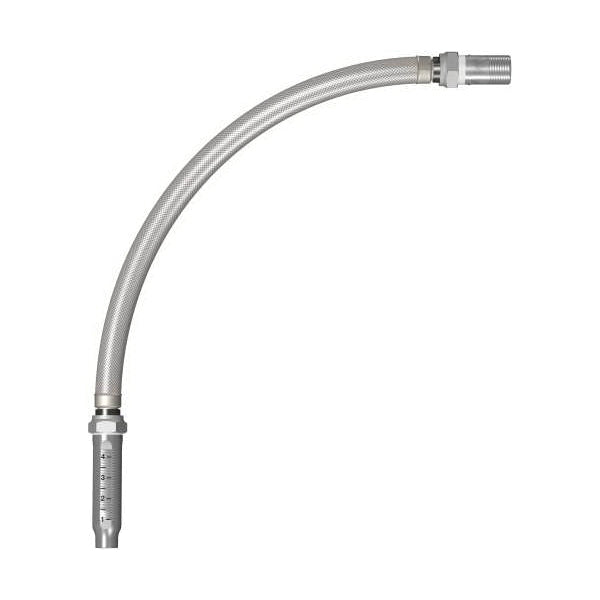

Victaulic A48HAQBBA1 VicFlex AH1 Stainless Steel Braided Flexible Drop Hose with 5.75 in Reducer

Product Description

The Victaulic A48HAQBBA1 is a VicFlex AH1 stainless steel braided flexible drop hose designed for effective fire protection systems. This hose has a length of forty-eight inches and includes a five point seven five inch reducer. It features a connection size of one half inches and is compatible with NPT.

• Up to ten times faster installation than threaded black pipe
• Kink-resistant for reliable performance
• Includes nylon isolation ring with carbon steel, zinc-plated nut and nipple

Product Highlights

The hose is engineered to withstand a pressure rating of two hundred thirty-two psi and a temperature rating of two hundred twenty-five degrees Fahrenheit. It also meets several industry standards including cULus, FM, VDS, and LPCB approvals.

Product Information

Standard Information

• Brand: Victaulic
• Sub Brand: VicFlex

Technical Specifications

• Model: AH1
• Material: 300 Stainless Steel
• Connection Size: 1/2 in
• Connection Type: NPT
• Pressure Rating: 232 psi
• Temperature Rating: 225 deg F
• Minimum Bend Radius: cULus 3 in, FM 7 in, VdS 3 in
• Standards/Certifications: cULus listed, FM, VDS, LPCB, CCC approved
