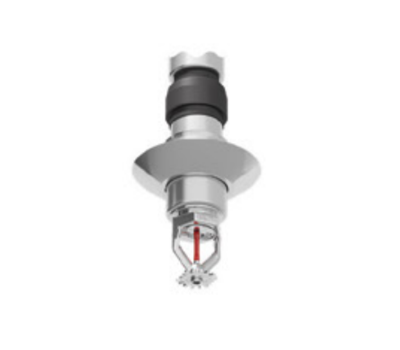

Victaulic A3F3BCQ44W58013 V3506 155 Degrees F 58 In. K5.6 Quick Response Dry Pendant Sprinkler With Sleeve And Skirt

Product Description

The Victaulic A3F3BCQ44W58013 is a V3506 quick response dry pendant sprinkler designed for effective fire suppression. This sprinkler features a one inch NPT connection and operates with a K-factor of 5.6 imp gallons. With a temperature rating of 155 degrees Fahrenheit, it is suitable for various applications in commercial and industrial settings.

• Connection Size: 1 inch NPT
• K-Factor: 5.6 imp gal
• Orientation: Pendant

Product Highlights

This dry sprinkler includes a sleeve and skirt for efficient installation and operation. It is designed specifically for pendant orientation.

Product Information

Standard Information

• Catalog Number: A3F3BCQ44W58013
• Temperature Rating: 155 degrees F

Technical Specifications

• Connection Size: 1 inch NPT
• K-Factor: 5.6 imp gal
• Product Type: Dry Sprinkler with Sleeve and Skirt
• Selling Length: 58 inches
• UPC: 883481766920
