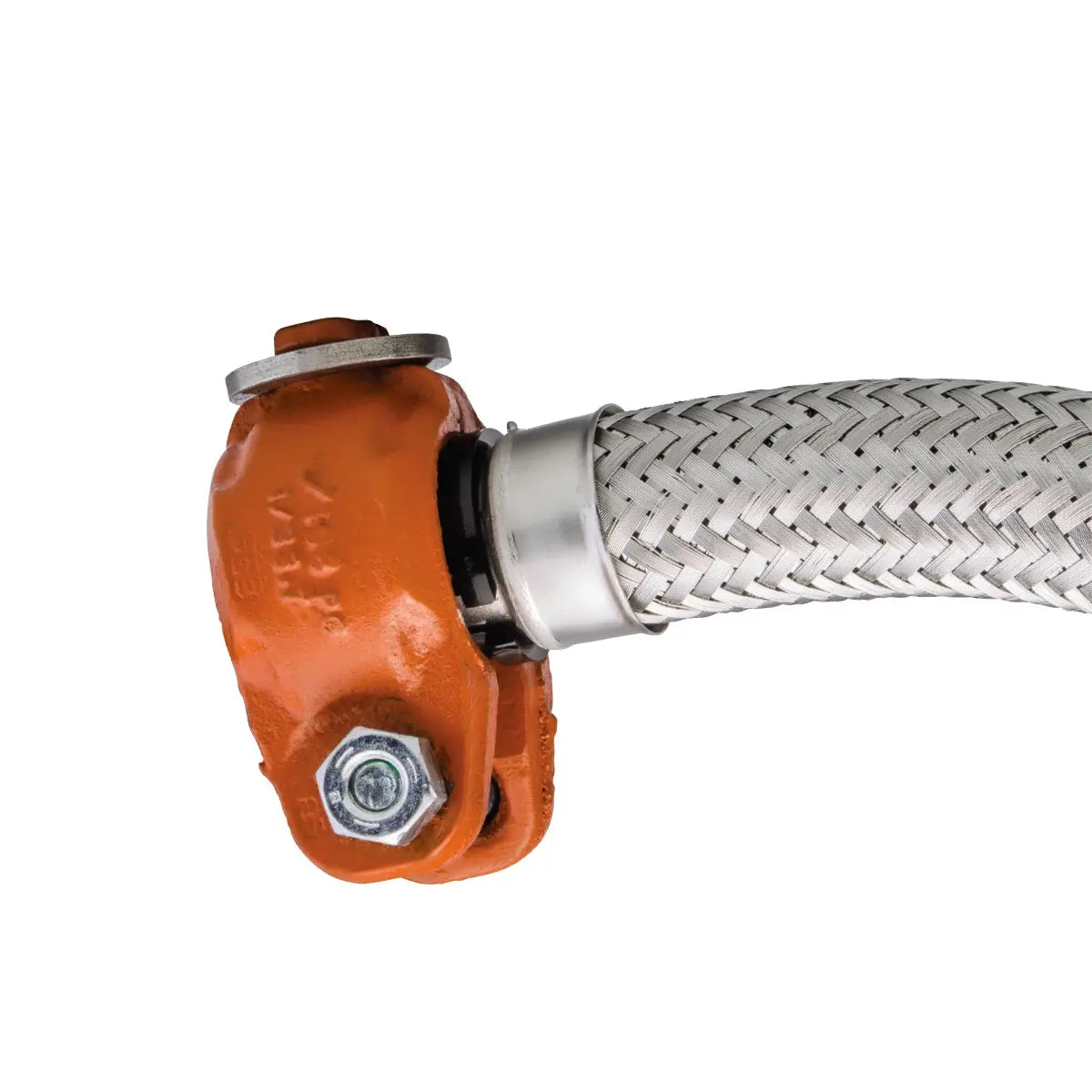

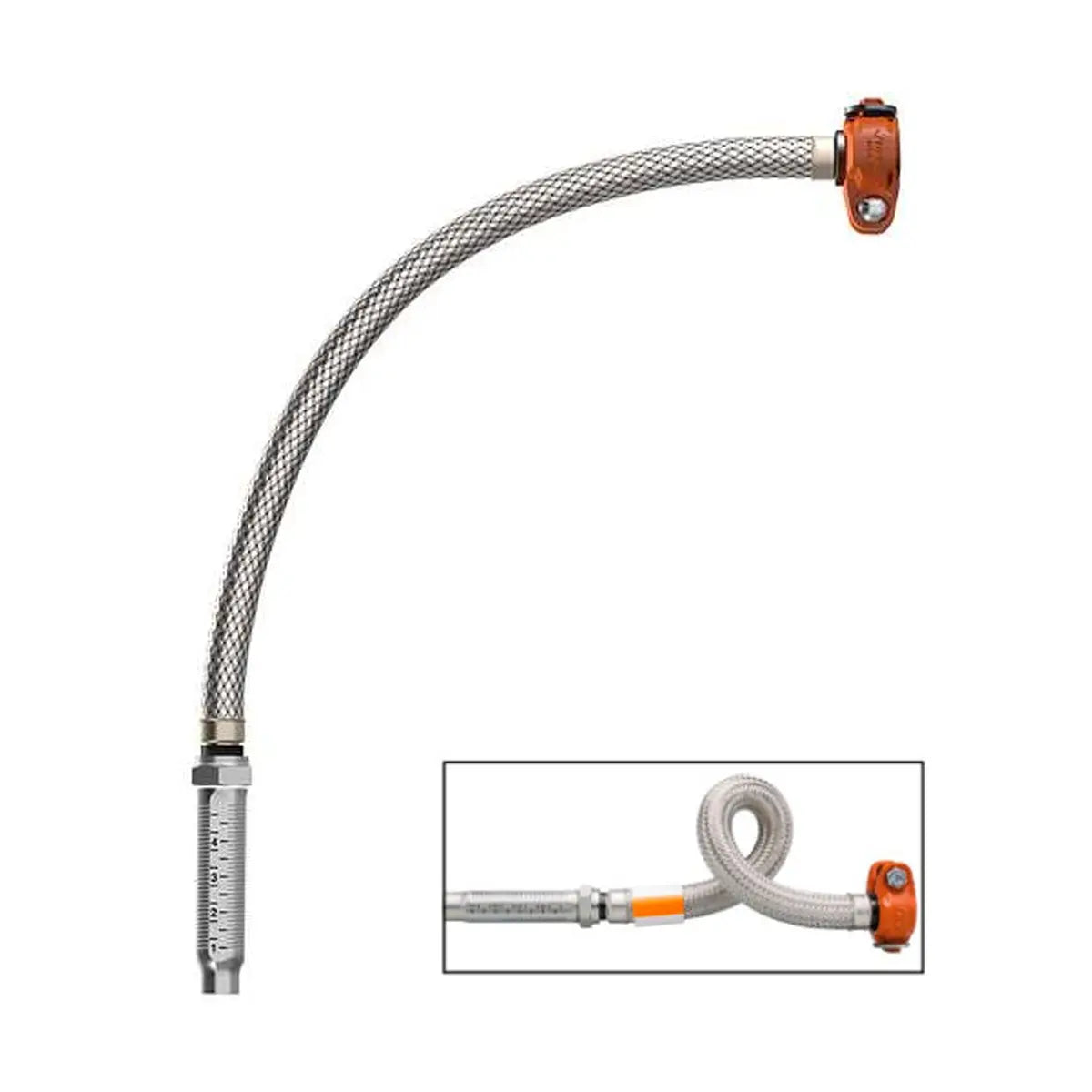

Victaulic A36TAQBBA1 Vic-Flex AH1 3/4 x 36 in Braided Hose with 5-3/4 in Reducer Nipple

Product Description

The Victaulic Vic-Flex AH1 series flexible braided hose with MPN A36TAQBBA1 is made for fire protection systems. This robust hose is thirty-six inches long and made from 300 stainless steel. It features a five-and-three-quarters inch straight reducer nipple for easy installation.

• Designed for a maximum pressure rating of 232 PSI.
• Installation is up to ten times faster compared to traditional threaded black pipe.
• Constructed to withstand temperatures up to two hundred twenty-five degrees Fahrenheit.

Product Highlights

This hose offers kink-resistant performance and incorporates patented captive coupling technology for quick and secure connections.

Product Information

Standard Information

• Sub Brand: Vic-Flex
• Series/Model: AH1 Series

Technical Specifications

• Size: 3/4 x 7/8 in
• Material: 300 Stainless Steel
• Length: 36 in
• Maximum Pressure Ratings: FM: 200 PSI, C/US UL: 175 PSI, VdS/LPCB: 232 PSI
• Temperature Rating: 225°F
• Industry Standards: FM Approved, C/US UL Listed, VDS G412024, LPCB104I-01
• Connection Type: NPT
