VICTAULIC 8508 Tonkaflo SS8508D Horizontal Multi-Stage Centrifugal Pump

Product Description

The VICTAULIC 8508 Tonkaflo SS8508D is a horizontal multi-stage centrifugal pump. It is suitable for fluid transfer applications in industrial and commercial settings. This pump features a Victaulic connection type with three-inch suction and discharge sizes. The casing is made from 316 stainless steel, ensuring durability, while the impeller is constructed from Noryl, optimizing performance.

• Horizontal multi-stage centrifugal pump design.
• Three-inch Victaulic connections for suction and discharge.
• Rated maximum inlet pressure of 200 PSI and discharge pressure of 750 PSI.

Product Highlights

This pump is designed to achieve higher pressure outputs and is ideal for various applications needing reliable fluid transfer.

Product Information

Standard Information

• Brand: VICTAULIC
• MPN: 8508

Technical Specifications

• Rated Flow (GPM): 85
• Boost (PSI): 142
• Discharge Size (Inches): 3
• Suction Size (Inches): 3
• Number of Stages: 8
• Motor Manufacturer: US Motors
• Motor: 15 TEFC, 3495 RPM
• Materials of Construction (Casing & Impeller): 316 SS, Noryl
• Connection Type: Victaulic
• Motor Voltage: 208, 230/460, 60Hz or 190/380, 50Hz
• Efficiency: 58%
• NPSH: 14 feet

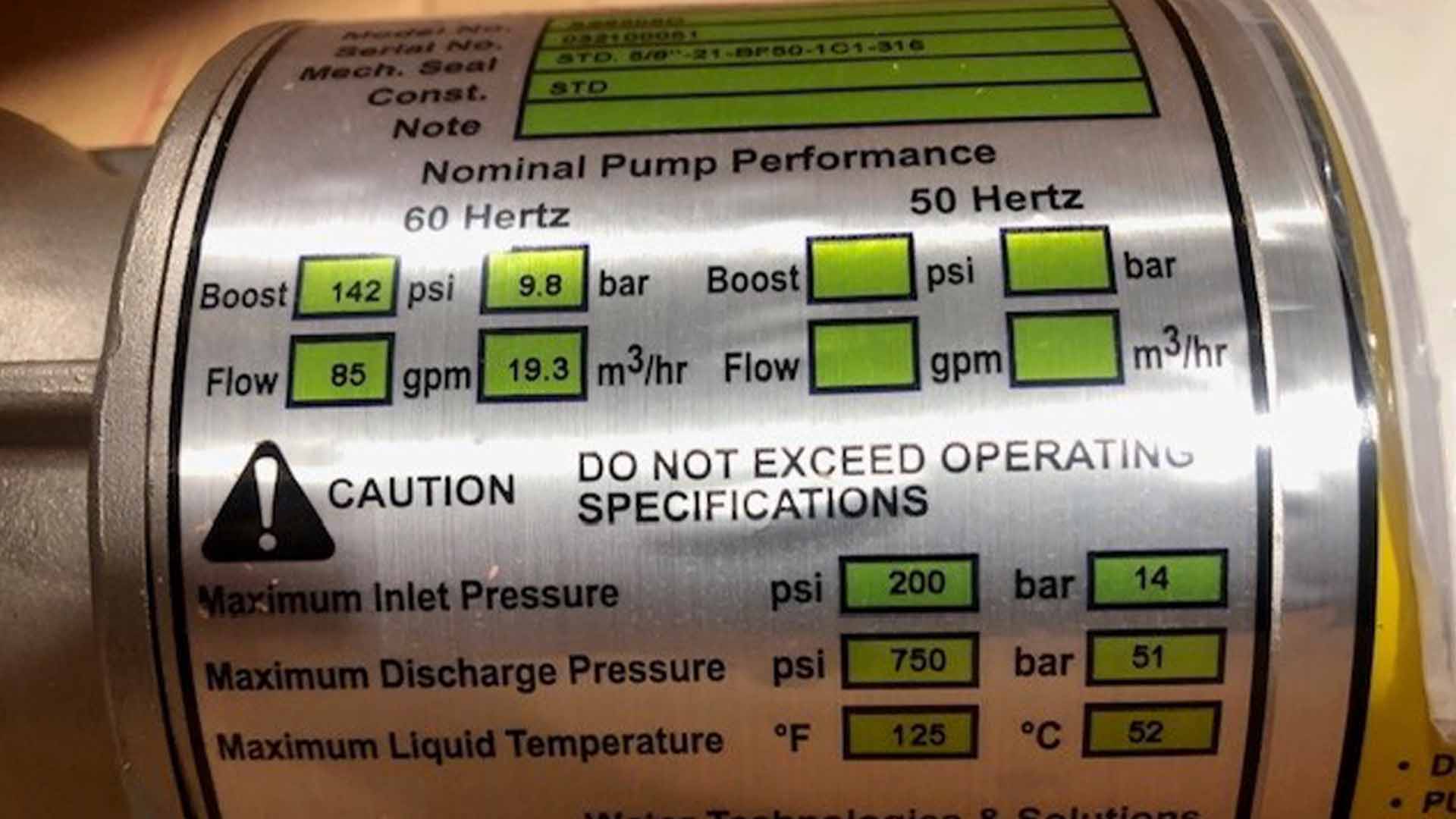

• Max Inlet Pressure: 200 PSI
• Max Discharge Pressure: 750 PSI
