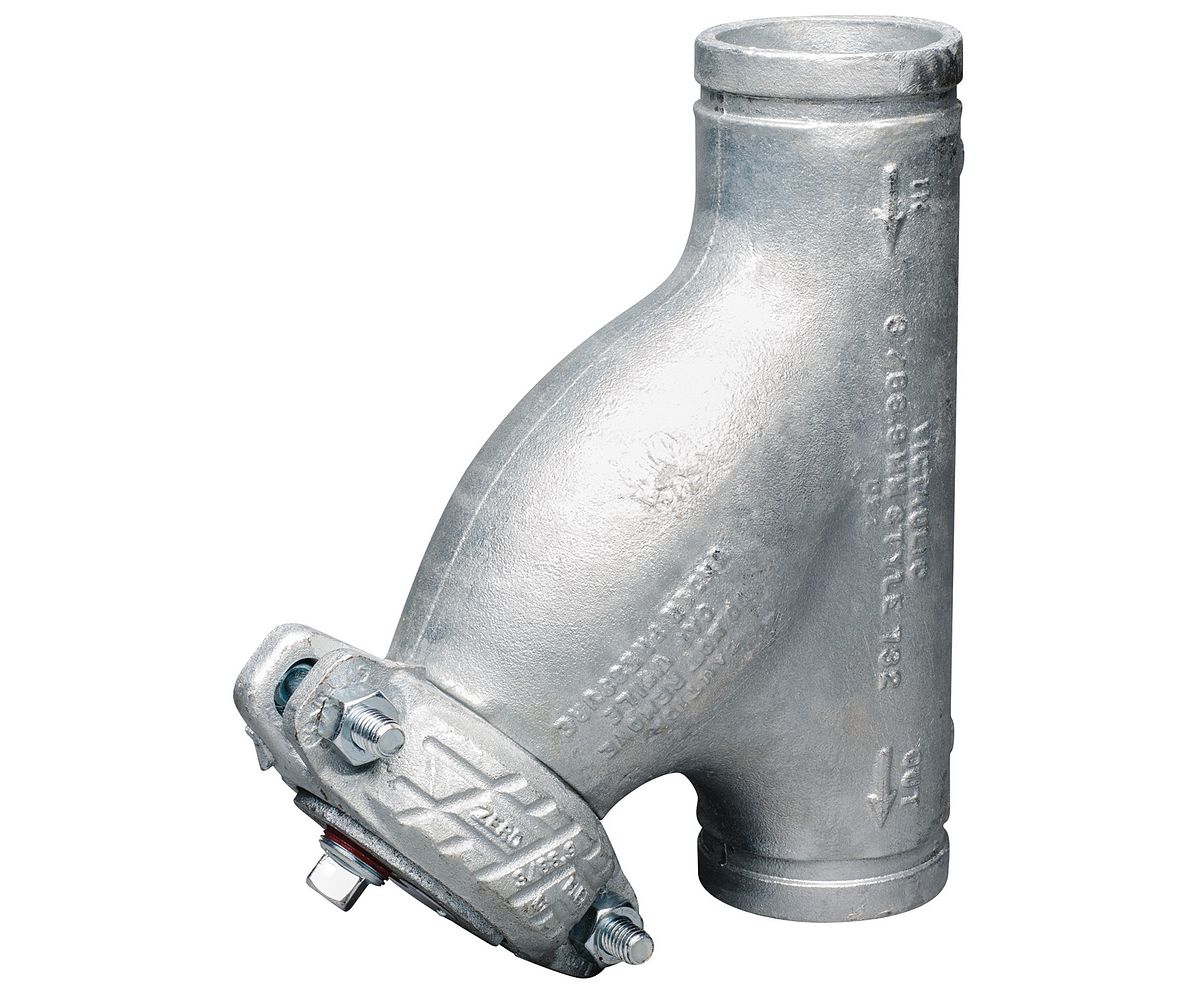

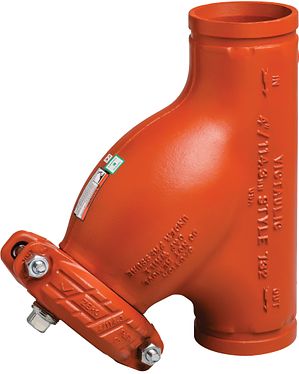

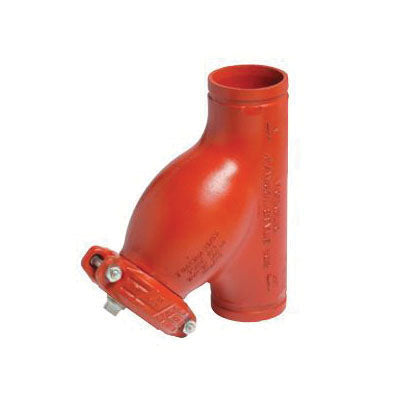

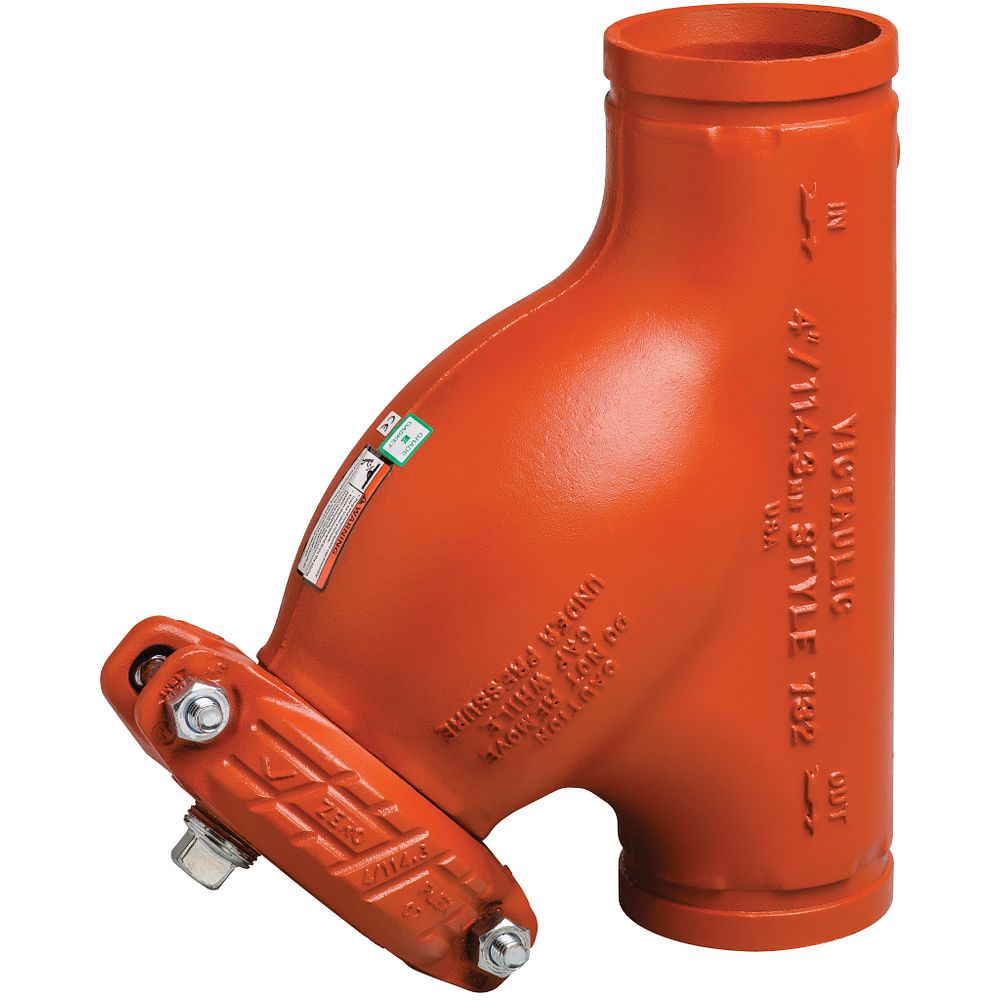

Victaulic 732-3 Series 732 Wye Type Strainer

Product Description

The Victaulic 732-3 is a Series 732 Y-Line strainer designed for efficient straight-through flow. The strainer features a grooved connection, an essential component for various plumbing and HVAC applications. Its ductile iron body is complemented by an orange enamel coating for additional durability. The strainer is equipped with EPDM/Nitrile softgoods to ensure strong connections and reduce leaks.

• Designed for straight-through flow.
• Incorporates a 3/4 inch NPT blow-off.
• Works effectively under a maximum pressure of 300 psi.

Product Highlights

This strainer is ideal for situations requiring reliable operation in high-pressure systems.

Product Information

Standard Information

• Series: Vic-Strainer 732
• Nominal Size: 3 inches

Technical Specifications

• Connection Type: Grooved
• Body Material: Ductile Iron
• Softgoods Material: EPDM/Nitrile
• Blow-Off Size: 3/4 inch NPT
• Color: Orange
• Finish: Enamel Coated
• Grade: 65-45-15
• Domestic/Import: Import
• Overall Height: 11-3/4 inches
• Pressures: up to 300 psi | 2068 kPa | 21 bar
• Sizes: 2 to 12 inches | DN50 to DN300
