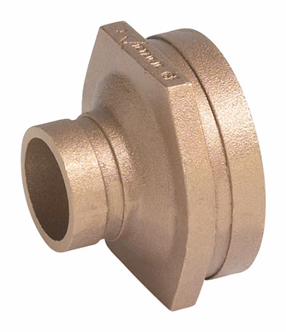

Victaulic 650-4x2 Concentric Reducer 4 x 2 Inch

Product Description

The VICTAULIC 650-4x2 is a concentric reducer designed for connecting tubing while adjusting size and direction in copper systems. This model is made from wrought copper, meeting ASTM B75 and ASTM B152 standards. It features grooved end connections and is suitable for pressure applications up to 300 PSI.

• Nominal size is four by two inches.
• Constructed from wrought copper for durability.
• UL, ULC Listed, and FM Approved.

Product Highlights

Ideal for use in various plumbing and HVAC systems requiring a reliable size transition.

Product Information

Standard Information

• Item Name: Concentric Reducer
• Series/Model: Model 650

Technical Specifications

• Nominal Size: 4 x 2 IN
• Connection Size: 4 x 2
• Connection Type: Grooved End
• Material: Wrought Copper
• Material Standard: ASTM B75, ASTM B152
• Material Specification: UNS C89836, UNS C92200
• Outside Diameter: 4-1/8 x 2-1/8 IN
• Length: 4-3/4 IN
• Maximum Pressure: 300 PSI
• Industry Standards: UL and ULC Listed, ANSI B16.22, FM Approved
• Domestic/Import: Import
• Weight: 1.650 LB
