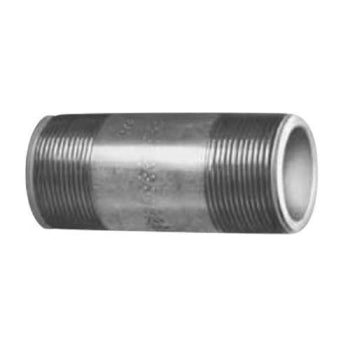

Victaulic 50600-01 Clearflow 47-TT Zinc Electro-Plated Carbon Steel Dielectric Nipple

Product Description

The Victaulic 50600-01 is a Clearflow dielectric nipple made from zinc electro-plated carbon steel. It is designed to connect different system types while preventing galvanic corrosion. This product is suitable for use in potable water systems.

• Connection size is two inches.
• Constructed with a thermoplastic lining for corrosion resistance.
• Rated for pressures up to three hundred psi.

Product Highlights

The dielectric nipple provides effective protection against corrosion in various plumbing systems.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: 50600-01

Technical Specifications

• Connection Size: 2 in
• Connection Type: MNPT
• Finish: Zinc Electro-Plated
• Item Name: Dielectric Nipple
• Length: 4 in
• Material: Carbon Steel
• Model: 47-TT
• Outside Diameter: 2-3/8 in
• Pressure Rating: 300 psi
• Sub Brand: Clearflow
• Temperature Rating: 230 deg F
• Material Specifications: ASTM F-1545-97, ASTM A53
• Standards/Certifications: UL listed, ANSI/NSF 61 certified, FDA, ANSI A1.20.1
• Applications: For potable water systems
