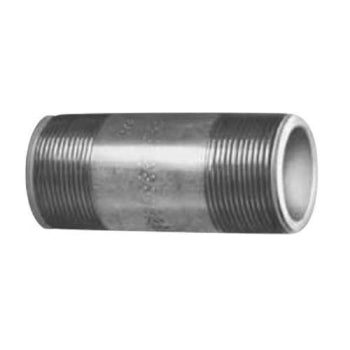

Victaulic 50500-01 Clearflow 47-TT 1-1/2 in Dielectric Nipple

Product Description

The Victaulic 50500-01 is a Clearflow dielectric nipple designed for plumbing applications. It features a connection size of one and a half inches and a MNPT connection type.

• Constructed from zinc electro-plated carbon steel.
• Inert thermoplastic lining prevents corrosion.
• UL listed and ANSI/NSF 61 certified for safe use.

Product Highlights

This product enhances the performance of waterway systems by eliminating galvanic corrosion issues between dissimilar metals. It connects easily to threaded (IPS) copper adapters and accommodates both galvanized and carbon steel.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Size: 1-1/2 in
• Connection Type: MNPT
• Finish: Zinc Electro-Plated
• Item Name: Dielectric Nipple
• Length: 4 in
• Material Specifications: ASTM F-1545-97, ASTM A53
• Material: Carbon Steel
• Model: 47-TT
• Outside Diameter: 1.9 in
• Pressure Rating: 300 psi
• Sub Brand: Clearflow
• Temperature Rating: 230 deg F
• Applications: For potable water systems
• Standards/Certifications: UL listed, ANSI/NSF 61 certified, FDA, ANSI A1.20.1
