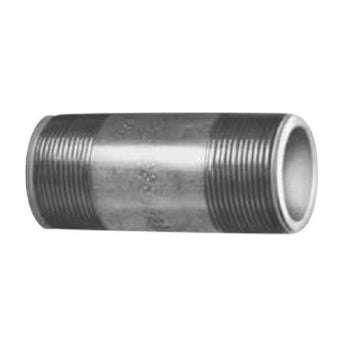

Victaulic 50400-01 Clearflow 47-TT Zinc Electro-Plated Carbon Steel Dielectric Nipple

Product Description

The Victaulic 50400-01 is a Clearflow 47-TT Zinc Electro-Plated Carbon Steel Dielectric Nipple designed for safe and effective waterway system connections. This product features a dielectric waterway that prevents galvanic corrosion between dissimilar metals in the presence of water.

• Style 47-GT connects a threaded (IPS) copper adapter to a grooved carbon steel or galvanized carbon steel system.
• Inert, non-corrosive thermoplastic lining enhances durability.
• Rated for a maximum pressure of 300 psi and can withstand temperatures up to 230 degrees Fahrenheit.

Product Highlights

This nipple is ideal for potable water systems, ensuring reliable performance and compliance with relevant standards.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: 50400-01

Technical Specifications

• Connection Size: 1-1/4 in
• Connection Type: MNPT
• Material: Carbon Steel
• Finish: Zinc Electro-Plated
• Length: 4 in
• Outside Diameter: 1.66 in
• Pressure Rating: 300 psi
• Temperature Rating: 230 deg F
• Model: 47-TT
• Standards/Certifications: UL listed, ANSI/NSF 61 certified, FDA, ANSI A1.20.1
• Sub Brand: Clearflow
• Applications: For potable water systems
