Viconics Technologies VT8650U5000B Vt8650 Rooftop Unit, Heat Pump & Iaq Room Controller

Product Description

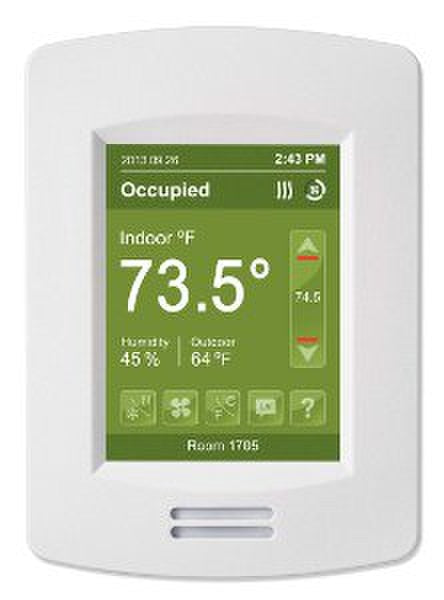

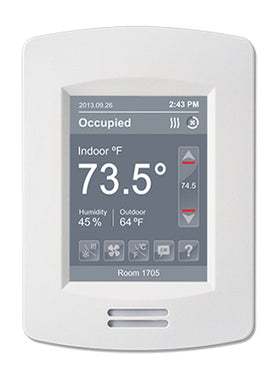

The VICONICS TECHNOLOGIES VT8650U5000B is a room controller designed for rooftop units, heat pumps, and indoor air quality applications. Suitable for new construction and retrofit projects, it reduces installation and configuration time. It provides advanced features and monitoring functions required by modern building automation systems in a compact enclosure. The unit features a customizable color digital touch screen interface with multi-language support.

• Configurable as 1H / 1C, 2H / 2C, 3H / 2C and Modulating (Analog) Heat / 2C for Rooftop units
• CO2 and fresh air inputs for Indoor Air Quality (IAQ) applications
• BACnet MS/ TP or Modbus RTU (user selectable)

Product Highlights

This programmable controller features a touchscreen, humidity sensor, and configurable sequence of operation. It supports BACnet MS/TP or Modbus RTU and is suitable for commercial and hospitality markets.

Product Information

Standard Information

• Brand: VICONICS TECHNOLOGIES
• Manufacturer Part Number: VT8650U5000B

Technical Specifications

• Application: Indoor Air Quality, Rooftop Unit, Multi-Stage (Heat/Cool), Heat Pump
• Stages: 3 Heat/2 Cool
• Programmability: Programmable
• User Interface: Touchscreen
• Mount: Vertical
• Options: Comes with Sensor, Fan Control
• Power Method: Hardwired
• Operating Temp Range: 32° to 122°F
• Voltage: 24V
• Item Number: VT8650U5000B
• Brand: Viconics
• Thermostat: Programmable
