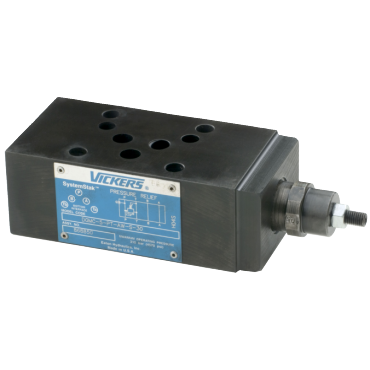

Vickers by Danfoss 868852 Vickers SystemStak Single Relief Valve 60 to 2,900 psi

Product Description

The Vickers by Danfoss 868852 is a single relief valve designed for effective pressure management in hydraulic systems. These valves are essential in preventing damage caused by excessive pressure and ensuring safe operation. The valve drains into the tank port and features an adjustment type with a screw and locknut. It supports a pressure adjustment range from sixty psi to two thousand nine hundred psi.

• Single relief function for effective pressure regulation
• Range of sixty to two thousand nine hundred psi
• Built to international mounting and port standards

Product Highlights

The Vickers SystemStak valve efficiently limits maximum system pressure, ensuring longevity and performance of hydraulic components.

Product Information

Standard Information

• Brand: Vickers by Danfoss
• Part Number: 102001222

Technical Specifications

• Interface: D05
• Adjustment Type: Screw with Locknut
• Pressure Limited In: Pressure Port
• Relief Function: Single
• Pressure Adjustment Range: 60 to 2,900 psi
• Flow Max: 32 gal/min
• Operating Pressure Max: 4500 psi
• Valve Type: Relief Valve P to T
• Model Number: DGMC-5-PT-CW-S-30
• Weight: 6.5 LB
