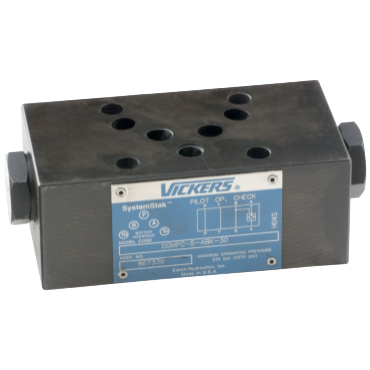

Vickers by Danfoss 867339 Vickers SystemStak Pilot Operated Check Valve A Port

Product Description

The Vickers by Danfoss 867339 is a reliable pilot operated check valve designed for A port use. This check valve permits free flow in one direction while preventing flow in the opposite direction. It acts as a non-modulating on/off device facilitating the secure holding of loads or actuators in their position.

• D05 Pilot Operated Check Valve
• Port A
• 15 psi Cracking Pressure

Product Highlights

This valve is essential for effective fluid control in various hydraulic applications.

Product Information

Standard Information

• Brand: Vickers by Danfoss
• Part Number: 101922868

Technical Specifications

• Valve Type: Pilot Operated Check Valve A Port
• Model No.: DGMPC-5-ABK-30
• Check Location: Port A
• Design No.: 30
• Interface: D05
• Family Name: Vickers D05 SystemStak Valves
• Cracking Pressure: 15 psi
• Manufacturer Part No.: DGMPC-5-ABK-30
• Decompression Feature: No
• Operating Pressure Max: 4500 psi
• Flow Max: 32 gal/min
• Weight: 3.485 LB
