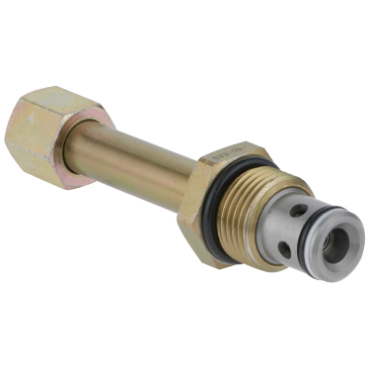

Vickers by Danfoss 565695 Vickers SV Series Directional Valve 120 VAC Cartridge Only

Product Description

The Vickers by Danfoss 565695 is a solenoid-operated directional valve designed for reliable operation in various applications. This valve is specifically engineered for hydraulic systems, offering a 2-way, normally open function. The cartridge valve design allows for easy installation and maintenance.

• Poppet type valve operating at a maximum flow of forty-five gallons per minute.
• Rated for 120 VAC, ensuring compatibility with standard electrical systems.
• Constructed with Buna-N seals for durability and reliability.

Product Highlights

This valve is ideal for applications requiring precise fluid control. It is also capable of functioning effectively in a wide temperature range, making it suitable for various environmental conditions.

Product Information

Standard Information

• Category: Solenoid Valves
• Brand: Vickers by Danfoss

Technical Specifications

• Coil Series: Use J Series, 23 W
• Cartridge Valve Series: SV3-10-O
• Cavity: C-10-2
• Housing Material: Cartridge Only
• Operation: Solenoid Operated
• Connector Type: DIN 43650
• Seal Material: Buna-N
• Poppet/Spool: Poppet
• Valve Voltage Rating: 120 VAC
• Max Flow: 45 gal/min
• Temperature Range: -40 °F to 248 °F
• Max Pressure: 3000 psi
• Size Designation: 10
• Actuation: Pilot Operated
• Weight: 1.0 LB
