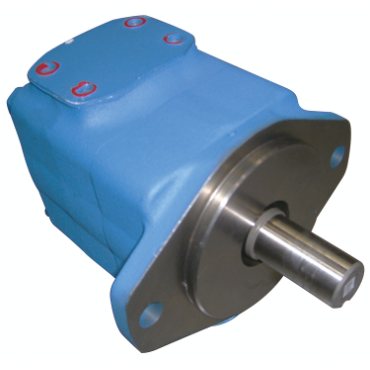

Vickers by Danfoss 02-137146-3 Vickers Fixed Displacement Single Vane Pump

Product Description

The Vickers by Danfoss 02-137146-3 is a fixed displacement single vane pump designed for efficient fluid power applications. It provides volumetric efficiencies exceeding ninety percent while maintaining low noise levels around sixty-two decibels.

• Pump rotation, port orientation, and cartridge kit are field changeable.
• Low noise operation.
• Flexibility in installation with self-wear compensation.

Product Highlights

This pump features a twelve-vane system that minimizes flow pulsations. It is ideal for various applications, taking advantage of a wide range of available displacements.

Product Information

Standard Information

• Brand: Vickers by Danfoss
• Part Number: 101874370

Technical Specifications

• Pump Series: 45V
• GPM @ Speed: 90 gpm @ 1800 rpm
• Shaft Type: Straight w/ Key
• Manufacturer Part No.: 45V60A-1C22R
• Cartridge Kit: 02-102575
• Mounting: Flange Mount
• Shaft Seal Type: Single Shaft Seal
• Pressure [Max]: 2500 psi
• Flow Rate: 60 gal/min @ 1200 rpm
• Seal Material: Buna-N
• Weight: 76.0 LB
