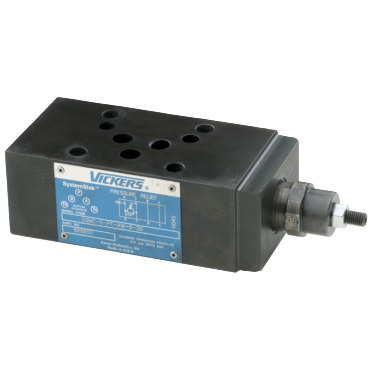

Vickers by Danfoss 02-108133 Vickers SystemStak Single Relief Valve 4500 psi

Product Description

The Vickers by Danfoss 02-108133 is a pressure control valve designed for various hydraulic applications. This single relief valve maintains safe pressure levels, preventing system overloads. It features a proportional actuation option and can adjust pressure between seven hundred twenty-five to four thousand five hundred psi.

• Pressure Adjustment Range: 725 to 4500 psi
• Flow Rate: 15 gallons per minute
• Mounting Style: Subplate/Manifold Mounted

Product Highlights

This robust valve is suitable for petroleum oil and features a screw adjustment for precise control.

Product Information

Standard Information

• Brand: Vickers by Danfoss
• Part Number: 101946594

Technical Specifications

• Model No.: DGMC-3-BT-GW-41
• Pressure [Max]: 4500 psi
• Seal Material: Buna-N
• Flow Rate: 15 gallons per minute
• Temperature Range [Min]: 32 °F
• Temperature Range [Max]: 176 °F
• Body Material: Cast Iron
• Fluid Cleanliness: 20/18/15 micron
