Product Description

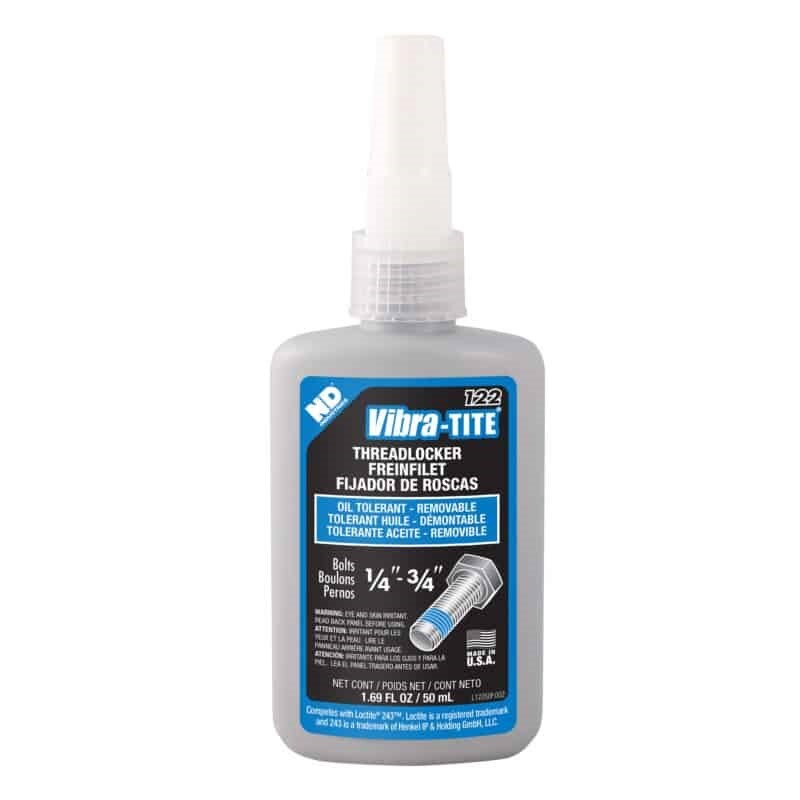

The Vibra-Tite 12250 Threadlocker is a reliable solution for securing threaded fasteners. Ideal for use with brass, bronze, copper, iron, manganese, monel, nickel, and steel, this medium-strength threadlocker is oil tolerant and blue in color.
- Primerless and medium-strength
- Anaerobic cure type
- Compatible with Vibra-Tite 611 primer
Product Highlights
This threadlocker works well with various metals and provides a secure hold with medium strength. The formula is designed to be oil tolerant, ensuring versatility in different environments.
Product Information
Standard Information
-
Brand: Vibra-Tite
-
MPN: 12250
Technical Specifications
-
Item: Primerless Medium-Strength Threadlocker
-
Size: 50 mL
-
Color: Blue
-
Series: VIBRA-TITE 122
-
Gap Fill: 0.01 in
-
Cure Type: Anaerobic
-
Full Cure: 24 hr
-
Pack Size: 1 EA
-
Viscosity: 1300 to 5500 cP
-
Shelf Life: 2 yr
-
Application: Locks machine tool access bolts, studs, and hydraulic system bolts
-
Flash Point: 268 Degrees F
-
Temp. Range: -60 Degrees to 300 Degrees F
-
VOC Content: 0.06 lb/gal
-
Product Form: Liquid
-
Working Time: 4 min
-
Chemical Base: Modified Acrylate
-
Chemical Type: Anaerobic
-
Brand & Series: VIBRA-TITE 122
-
Container Size: 1.69 fl oz
-
Container Type: Bottle
-
Removable With: Hand tools
-
Removal Method: Hand tool
-
Begins to Harden: 4 min
-
Breakaway Torque: 195 in-lb
-
Specific Gravity: 1.08
-
For Fastener Dia.: 1/4 in to 3/4 in
-
For Material Type: Brass, bronze, copper, iron, manganese, monel, nickel, steel
-
Maximum Viscosity: 12000 cps
-
Minimum Viscosity: 2250 cps
-
Prevailing Torque: 70 in-lb
-
VOC Content Range: 10 g/L and under
-
Properties & Color: Oil tolerant, blue
-
Subhead Properties: Oil tolerant
-
Working Time Range: 5 min or less
-
Torque and Strength: 195 in-lb, medium
-
Compatible Materials: Brass, bronze, copper, iron, manganese, nickel, steel
-
Storage Requirements: 14 Degrees to 86 Degrees F
-
Threadlocker Strength: Medium
-
Breakaway Torque Range: 101 in-lb to 200 in-lb
-
Container Size and Type: 1.69 fl oz bottle
-
Compatible Primer Series: Vibra-Tite 611
-
Threadlocker Disassembly: Removable
-
Threadlocking Properties: Oil tolerant
-
For Maximum Thread Diameter: 3/4 in
-
Threadlocker Classification: Threadlocker
-
Maximum Operating Temperature: 300 Degrees F
-
Minimum Operating Temperature: -65 Degrees F
-
Recommended Surface Preparation: Dry surface (metal), oily surface
-
Country of Origin (subject to change): United States
