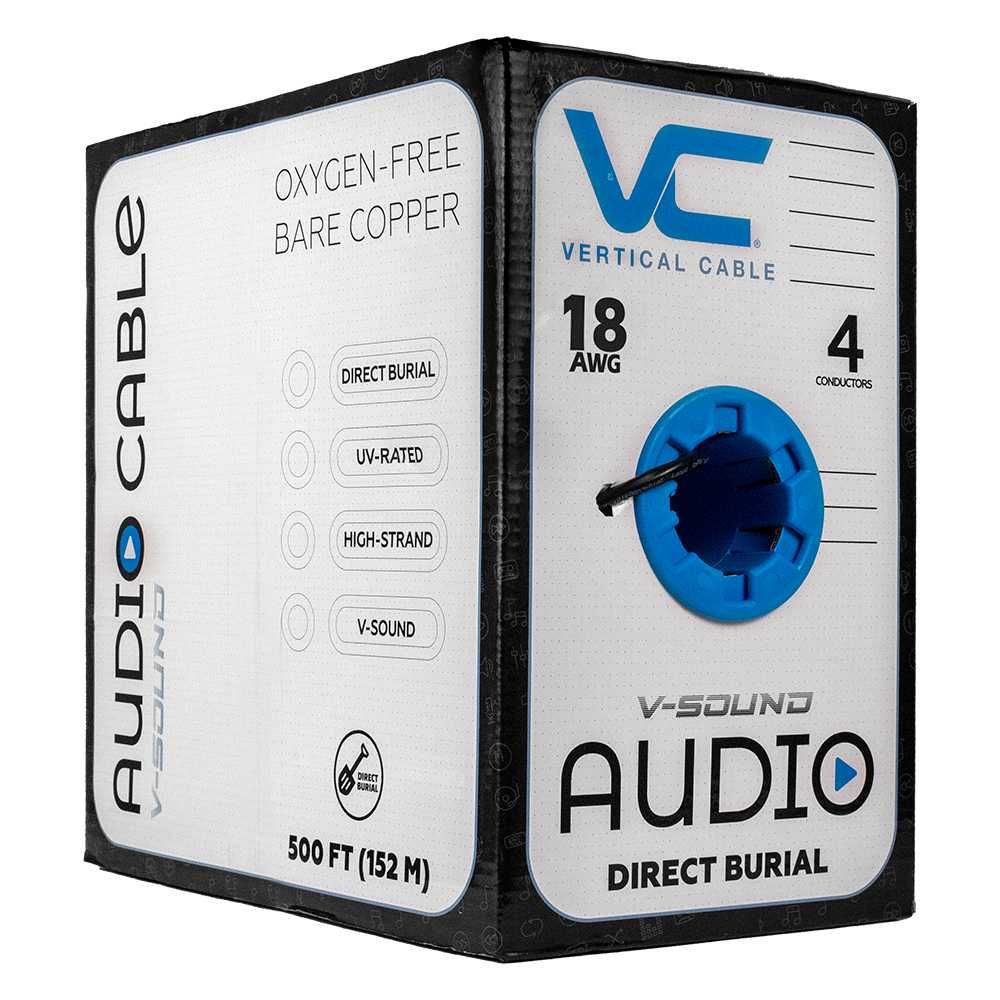

Vertical Cable 209-2329/DB Audio Cable, UV Rated Outer Jacket, Direct Burial, 18AWG, 4 Conductor, Stranded (16 Strand), 500 ft, PE Jacket, Pull Box

Product Description

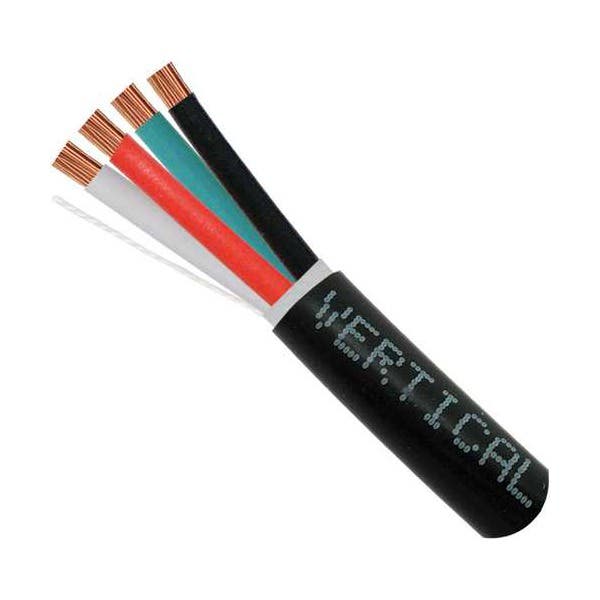

The VERTICAL CABLE 209-2329/DB is an audio cable with a UV rated outer jacket designed for direct burial. This 18AWG cable features 4 conductors stranded with 16 strands and comes in a 500 ft pull box with a PE jacket. It is suitable for demanding outdoor environments and ensures clear reliable signal transmission over long distances.

• Suitable for Direct Burial
• Durable Weather Resistant PE Jacket
• Water Block Tape

Product Highlights

This 18 AWG four conductor stranded audio cable is built for direct burial use and has a UV and moisture resistant jacket.

Product Information

Standard Information

• Brand: VERTICAL CABLE
• Manufacturer Part Number: 209-2329/DB

Technical Specifications

• Conductor Type: Stranded Bare Copper
• Conductor Size: 18 AWG
• Thickness: 0.02 in. (0.50 mm)
• Material: Polyvinyl Chloride (PVC), Polyethlyne (PE)
• Jacket Marking: VERTICAL 5024318 c(ETL)us AUDIO CABLE 18AWG 2 COND 16 STRANDED OXYGEN FREE OUTDOOR UV DIRECT BURIAL RoHS XXXFT 076217N0702207 07:31
• Conductors Stranding: 16/0.24 mm
• Tensile Strength: Before: ≥13.8 After: ≥85% of unaged
• Voltage: 300 V RMS
• Number of Conductors: 4
• Compliance: RoHS, ETL Listed
• Insulation Outer Diameter: 0.07 in. (1.75 mm)
