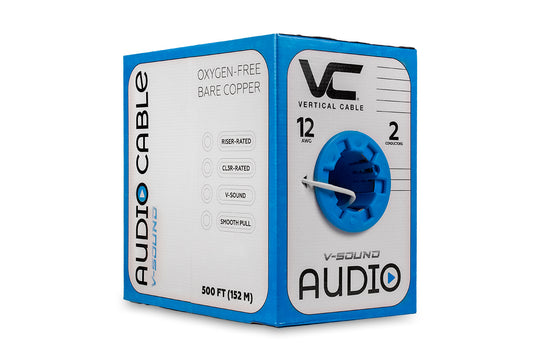

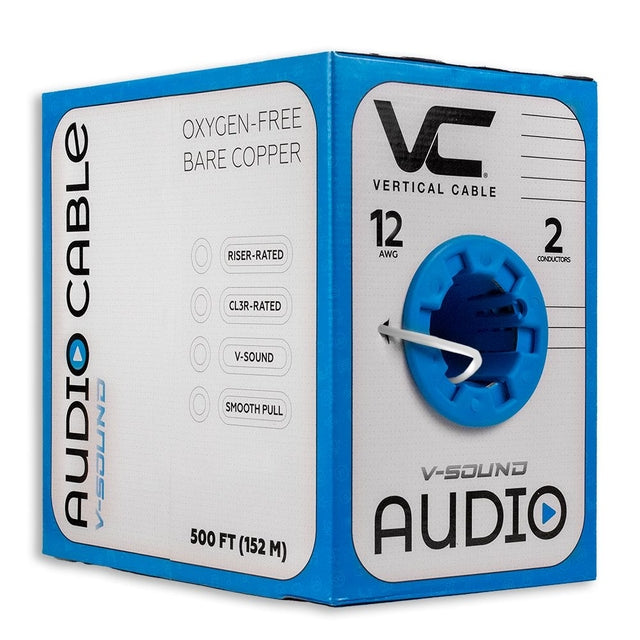

Vertical Cable 209-2324/WH Cable 12/2 Stranded 500 feet Pull Box

Product Description

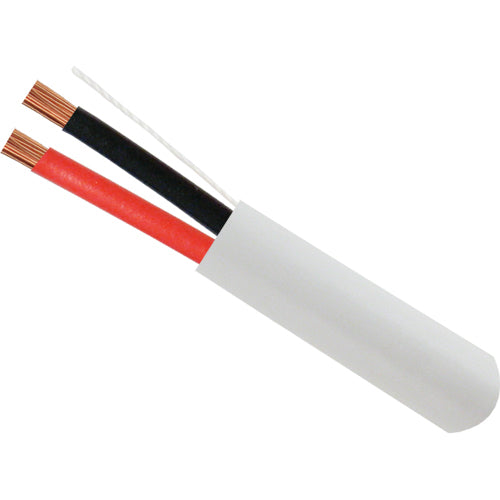

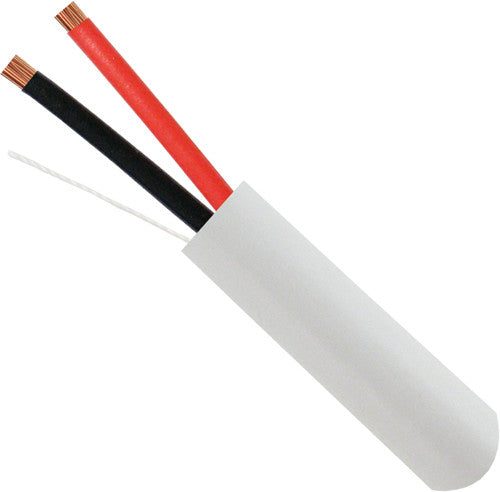

The Vertical Cable 209-2324/WH is a 12/2 stranded cable in a 500' pull box. This CL3 in-wall rated cable meets National Electrical Codes (NEC) standards for fire safety. Its black PVC jacket and stranded copper design is suitable for indoor installations. Sequential length markings along the cable jacket eliminate measurement guesswork.

• CMR CL3 In-Wall Rated
• Oxygen-free Stranded Bare Copper Conductors
• For Intercom Systems, Home Audio, and Indoor Applications

Product Highlights

Ideal for surround sound and intercom systems, the cable features polarized wires color-coded in red and black for easy identification.

Product Information

Standard Information

• Brand: VERTICAL CABLE
• Manufacturer Part Number: 209-2324/WH

Technical Specifications

• Conductor: 2 Core (Stranded BC)
• Material: Oxygen Free Copper Wire Strands
• Size: 12 AWG
• Stranding: 65 Strand
• Strand Diameter: 0.254 mm
• Insulation Material: PVC
• Average Thickness: 0.80 mm
• Min. Point Thickness: 0.72 mm
• Diameter (±0.05mm): 3.20 mm
• Assembly Diameter (±0.1mm): 6.40
• Jacket Material: PVC
• Outer Diameter: 8.00 mm
• Insulation Color: Black, Red
• Ripcord Material: Nylon (150D)
• Rated Temperature (°C): 75
• Voltage Rating: 30V
• Reference Standard: ETL, CMR, CL3
