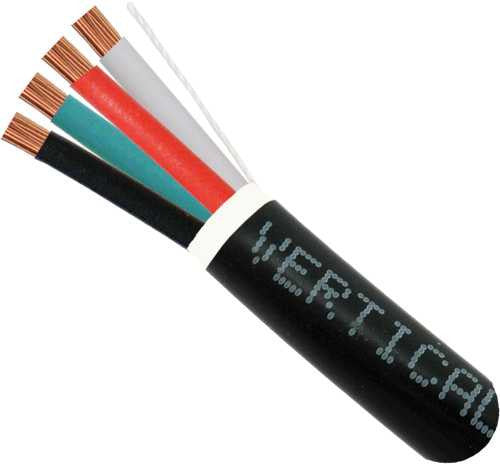

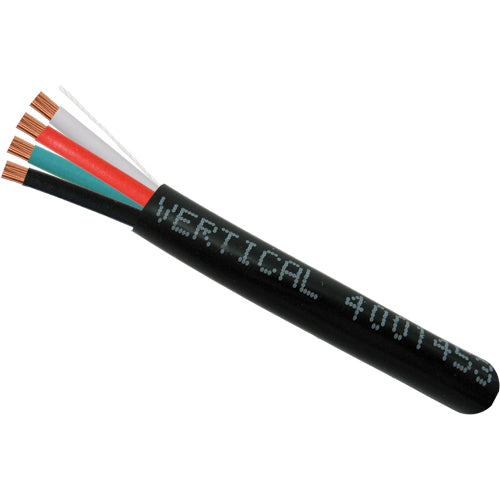

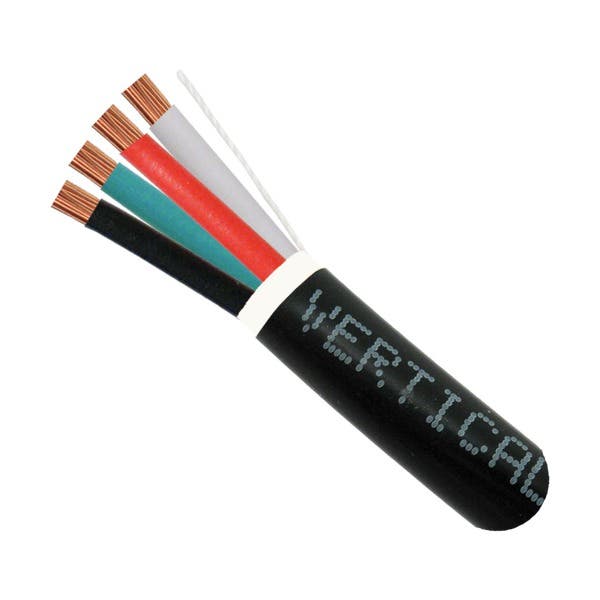

Vertical Cable 209-2321/DB High Strand Audio Cable 14AWG 4 Conductor 500 ft

Product Description

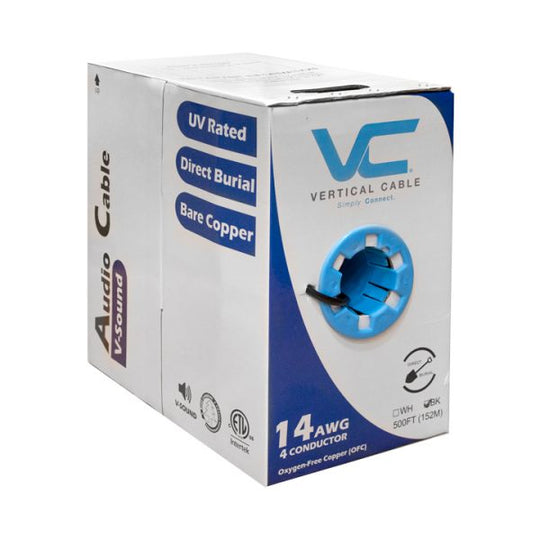

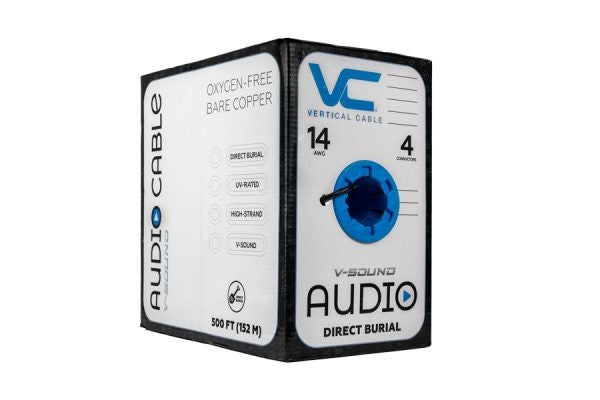

The VERTICAL CABLE 209-2321/DB is a high strand audio cable featuring a UV rated outer jacket designed for direct burial. This 14AWG cable includes 4 conductors with high-strand oxygen-free bare copper. Housed in a 500ft pull box, it is suitable for outdoor and underground installations, ensuring clear and stable audio or control signal performance over long distances.

• Suitable for Direct Burial
• Durable Weather Resistant Jacket
• High-Strand Oxygen Free

Product Highlights

Ideal for outdoor speakers, landscape audio, intercom systems, and gate controls, this cable ensures lasting durability in demanding environments.

Product Information

Standard Information

• Brand: VERTICAL CABLE
• Manufacturer Part Number: 209-2321/DB

Technical Specifications

• Conductor Type: Stranded Bare Copper
• Conductor Size: 14 AWG
• Conductors Stranding: 105/0.16 mm
• Voltage: 300 V RMS
• Number of Conductors: 4
• Compliance: RoHS, ETL Listed
• Stranding: 105 Strand
• Strand Diameter: 0.16 mm
• Insulation Material: SRPVC
• Average Thickness: 0.95 mm
• Min. Point Thickness: 0.88 mm
• Diameter (±0.05mm): 2.60 mm
• Assembly Diameter (±0.1mm): 6.20 mm
• Jacket Material: PE
• Outer Diameter: 8.20 mm
• Insulation Color: Black, Red, Green, White
• Ripcord Material: Nylon (150D)
• Rated Temperature (°C): -20 - 75
• Voltage Rating: 30V
• Conductor Material: Oxygen free stranded copper
• Application: Outdoor and underground installations
• Jacket: Heavy duty UV resistant and moisture resistant
• AWG: 14
