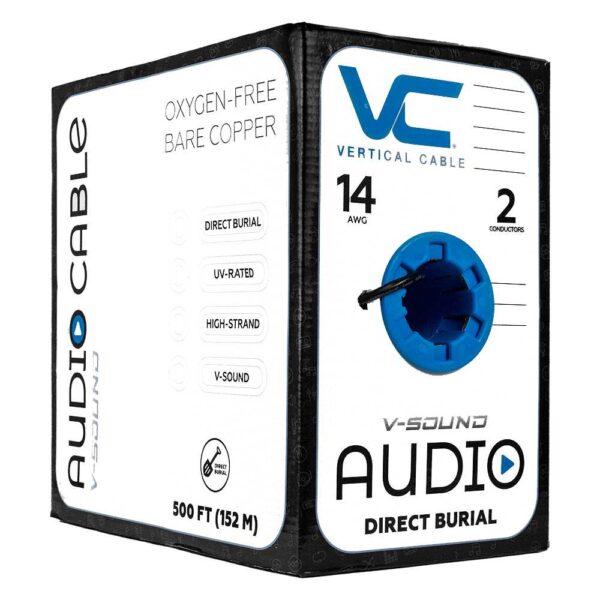

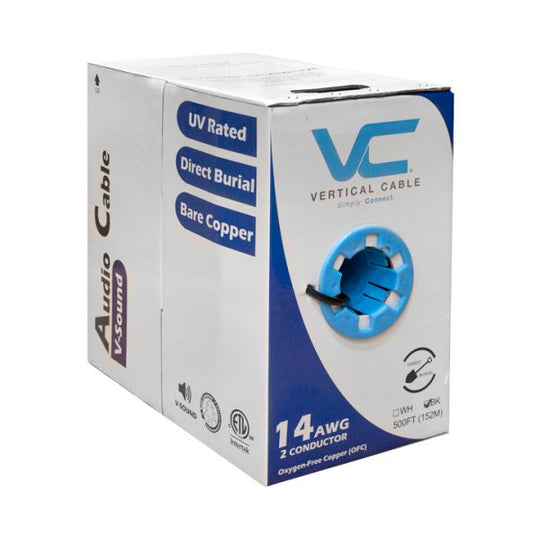

Vertical Cable 209-2320/DB Audio Cable, UV Rated, Direct Burial, 14AWG, 2 Conductor, 500 ft

Product Description

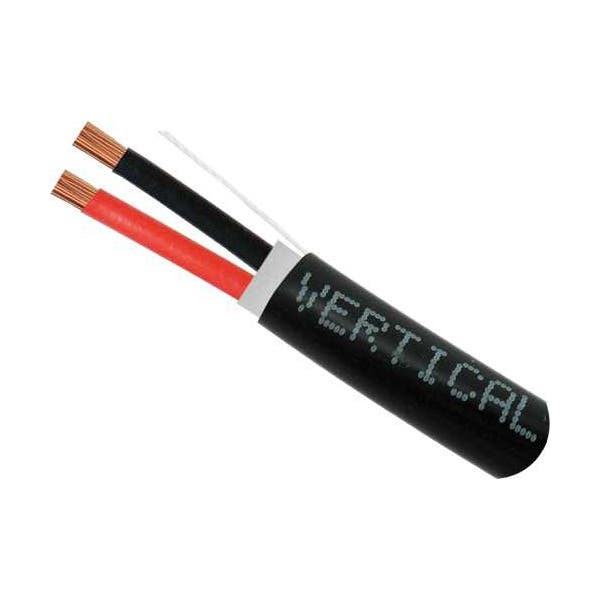

The VERTICAL CABLE 209-2320/DB is a UV-rated, direct burial audio cable, engineered for outdoor and underground installations. This 14 AWG, 2 conductor wire ensures durability and reliability. Features a weather-resistant jacket and high-strand oxygen-free bare copper conductors. Ideal for landscape audio systems or connecting outdoor speakers, delivering dependable performance.

• Suitable for Direct Burial
• Durable Weather Resistant Jacket
• High-Strand Oxygen Free
• Bare Copper Conductors

Product Highlights

Premium UV-rated, direct burial audio wire for long-lasting performance in harsh environments. Features a robust construction and delivers dependable performance.

Product Information

Standard Information

• Brand: VERTICAL CABLE
• Manufacturer Part Number: 209-2320/DB

Technical Specifications

• Conductor: 2 Core (Stranded BC)
• Material: Oxygen Free Copper Wire Strands
• Size: 14 AWG
• Stranding: 105 Strand
• Strand Diameter: 0.16 mm
• Insulation Material: SRPVC
• Average Thickness: 0.95 mm
• Min. Point Thickness: 0.88 mm
• Diameter (±0.05mm): 2.60 mm
• Assembly Diameter (±0.1mm): 5.20 mm
• Jacket Material: PE
• Outer Diameter: 7.00 mm
• Insulation Color: Black, Red
• Ripcord Material: Nylon (150D)
• Rated Temperature (°C): -20 - 75
• Voltage Rating: 300V
