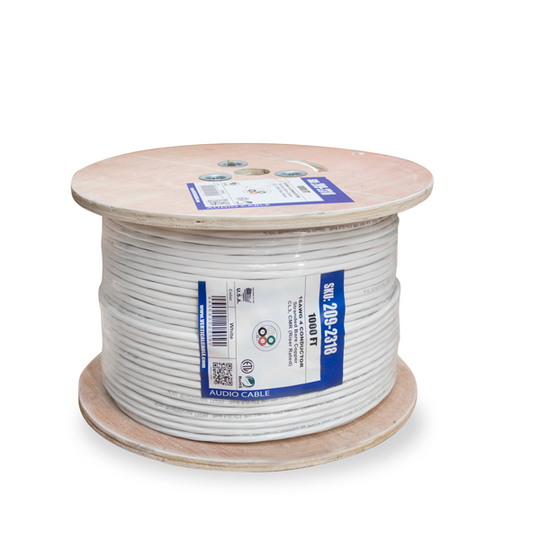

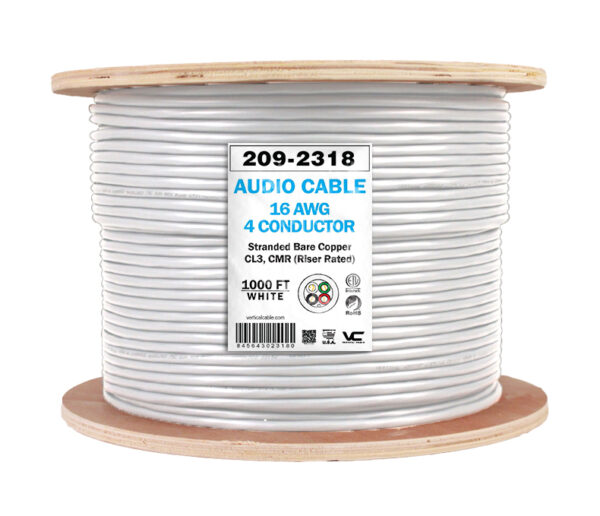

Vertical Cable 209-2318 High Strand Audio Cable 16AWG 4 Conductor (65 Strand) 1000 ft Spool

Product Description

The VERTICAL CABLE 209-2318 is a high strand audio cable with a PVC jacket. This 16AWG cable features 4 conductors, each stranded with 65 strands, and comes on a 1000ft spool. It is suitable for intercom systems, sound/audio setups, and indoor applications. The cable is ETL Listed and RoHS Compliant.

• Intercom Systems
• Sound / Audio
• Indoor Applications

Product Highlights

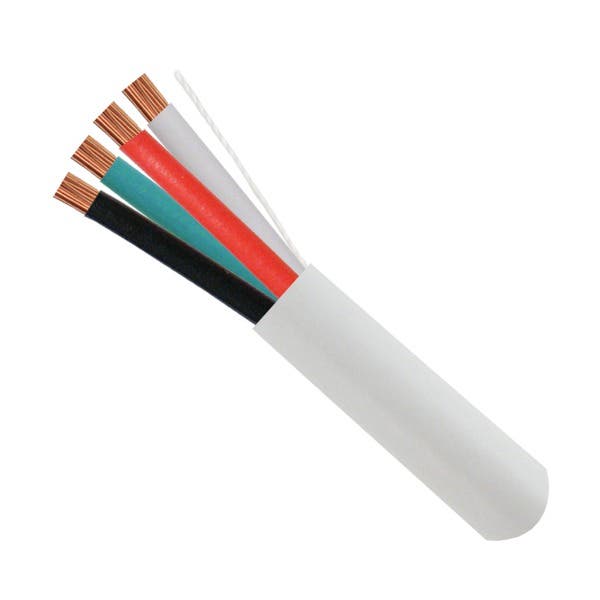

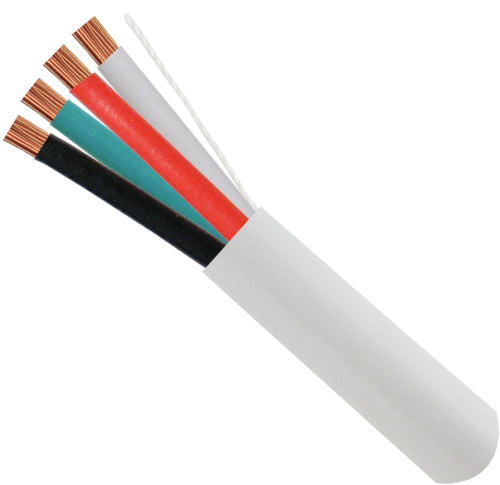

This 16 AWG 4 conductor audio cable features stranded oxygen free copper conductors, a PVC jacket and is CMR/CL3 Rated.

Product Information

Standard Information

• Brand: VERTICAL CABLE
• Manufacturer Part Number: 209-2318

Technical Specifications

• Conductor: 4 Core (Stranded BC)
• Material: Oxygen Free Copper Wire Strands
• Size: 16 AWG
• Stranding: 65 Strand
• Strand Diameter: 0.16 mm
• Insulation Material: PVC
• Average Thickness: 0.60 mm
• Min. Point Thickness: 0.54 mm
• Diameter (±0.05mm): 2.1 mm
• Assembly Diameter (±0.1mm): 5.10 mm
• Jacket Material: PVC
• Outer Diameter: 6.30 mm
• Insulation Color: Black, Red, Green, White
• Ripcord Material: Nylon (150D)
• Rated Temperature (°C): 75
• Voltage Rating: 30V
• Reference Standard: ETL, CMR, CL3
• Test Material: PVC
• Before Tensile Strength (Mpa): >=13.8
• Aging Elongation (%): >=50% of unaged
• Aging Condition (°Cxhrs): 100x168
• After Tensile Strength (Mpa): >=85% of unaged
• Cold Bend (-20±2°Cx4hrs): No Crack
• Specification Met: CL3
• Indoor/Outdoor Usage: Indoor, Outdoor
• Manufacturer: Vertical Cable
