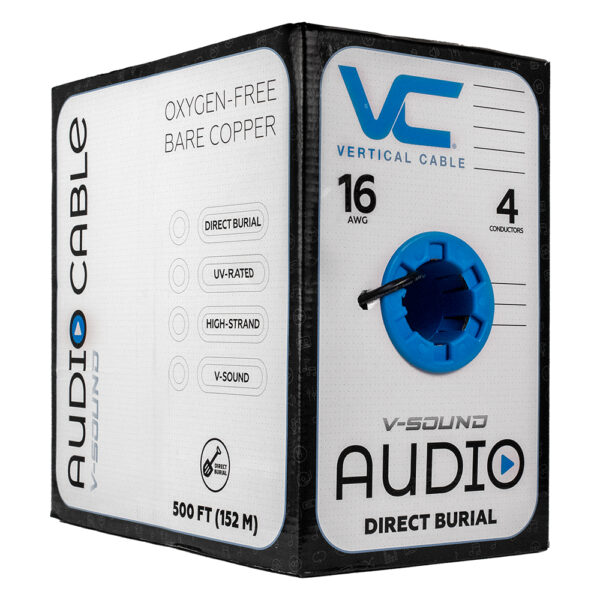

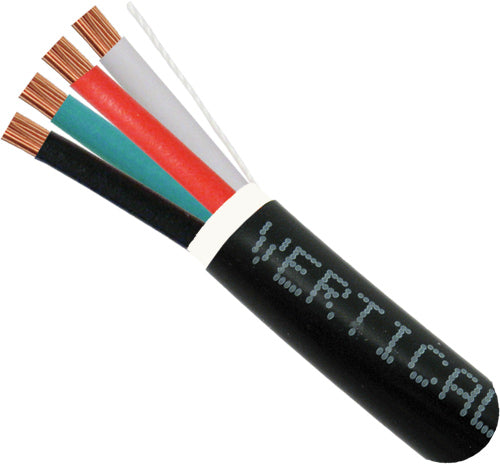

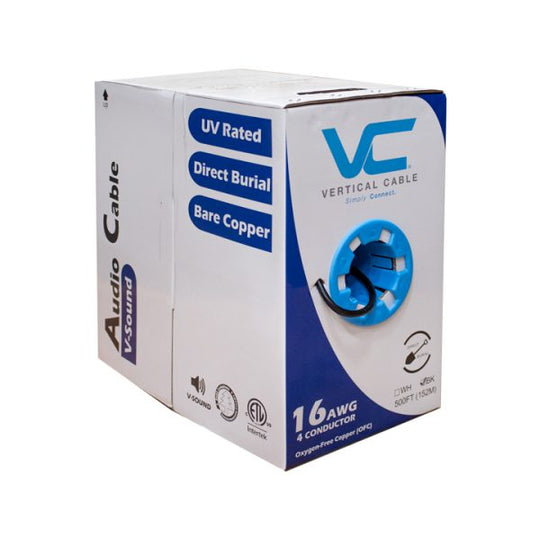

The VERTICAL CABLE 209-2316/DB is an audio cable with a UV rated outer jacket designed for direct burial. It features a 16AWG, 4 conductor stranded design with a PE jacket and comes in a 500 ft pull box. Ideal for outdoor speaker and intercom systems, this cable ensures quality and durability for various installation needs.
Suitable for Direct Burial
Durable Weather Resistant Jacket
High-Strand Oxygen Free
Product Highlights
This cable features bare copper conductors, is ETL Listed and RoHS Compliant, and comes in a 500 ft pull box.
Product Information
Standard Information
Brand: VERTICAL CABLE
Manufacturer Part Number: 209-2316/DB
Country of Origin: United States
Technical Specifications
Conductor
16AWG
Conductors
4
Stranding
Stranded (65 Strand)
Length
500 ft
Jacket
PE
Material
Oxygen Free Copper Wire Strands
Size
16 AWG
Strand Diameter
0.16 mm
Insulation Material
SRPVC
Average Thickness
0.95 mm
Min. Point Thickness
0.88 mm
Diameter (±0.05mm)
2.10 mm
Assembly Diameter (±0.1mm)
5.10 mm
Outer Diameter
7.00 mm
Insulation Color
Black, Red
Ripcord Material
Nylon (150D)
Rated Temperature (°C)
-20 - 75
Voltage Rating
30V
Reference Standard
ETL
Test Material
PE
Before Tensile Strength (Mpa)
>=13.8
Aging Elongation (%)
>=50% of unaged
Aging Condition (°Cxhrs)
100x168
After Tensile Strength (Mpa)
>=85% of unaged
Cold Bend (-20±2°Cx4hrs)
No Crack
Gauge
16 AWG
Connector B
None/Raw
Connection Split/Duplication
none
Connector A
None/Raw
Brand
Vertical Cable
Cable Length
500 ft
Type
Cable
UPC
845643029090
Country of Origin
United States
MFG #
209-2316/DB
SES #
VCC 209-2316/DB
application
Sound And Audio, Intercom Systems, Indoor Applications
