Vertical Cable 209-2315/BK Audio Cable 16AWG 500 ft

Product Description

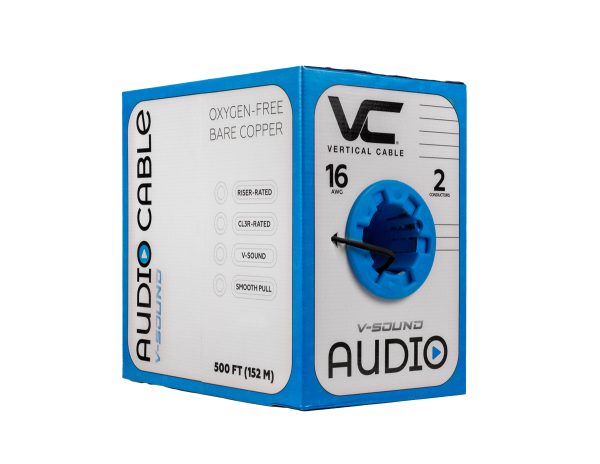

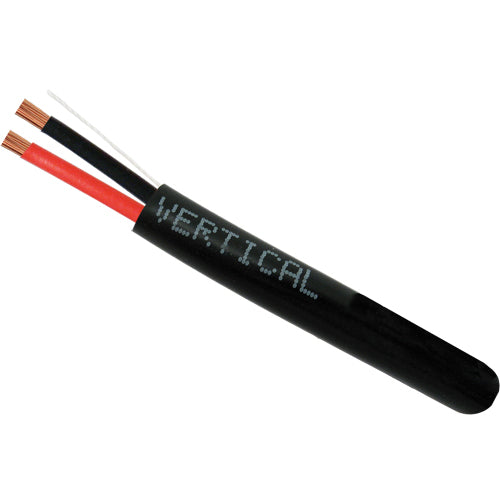

The VERTICAL CABLE 209-2315/BK is an audio cable with 16 AWG and 2 conductors, featuring oxygen-free stranded bare copper for flexibility and signal clarity. It has a PVC jacket with sequential length markings and is available in a pull box for ease of use. This cable is flame retardant tested to CMR CL3 standards and can withstand cold bend tests down to -20 degrees Celsius.

• Oxygen-Free Stranded Bare Copper
• Flame Retardant Test: CMR CL3
• Sequential Length Markings on Jacket

Product Highlights

16 AWG audio cable with oxygen-free copper, CMR CL3 flame retardant rating, and sequential length markings.

Product Information

Standard Information

• Brand: VERTICAL CABLE
• Manufacturer Part Number: 209-2315/BK

Technical Specifications

• Size: 16 AWG x 2C
• Material: Oxygen-Free Stranded Bare Copper
• Insulation Material: PVC
• Cold Bend Test: -20,ºC, 4 hours No Cracking
• Flame Retardant Test: CMR CL3
• 2 Core: 16AWG Stranded Oxygen-free Copper Conductors, 65 Strand, 0.16mm Strand Diameter
• Black and Red PVC Insulation: 0.31mm Average Thickness, 0.27mm Minimum Point Thickness, 2.10mm (±0.05mm) Diameter
• Assembly Diameter: 4.10mm (±0.1mm)
• Black PVC Jacket: 0.5mm Average Thickness, 0.45mm Minimum Point Thickness, 5.10mm (±0.1mm) Outer Diameter
• Ripcord: 150D Nylon
• Rated Temperature: 75ºC
• Rated Voltage: 300V
• Standards: ETL, CMR, CL3
• Compliant: RoHS Compliant
• Type: 2-Conductor 16AWG Wire Speaker Cable
• Cable Length: 500ft
• Gauge: 16 AWG
