Vertical Cable 161-103/GR Cat 6 Ethernet Cable 23 AWG 1000 feet

Product Description

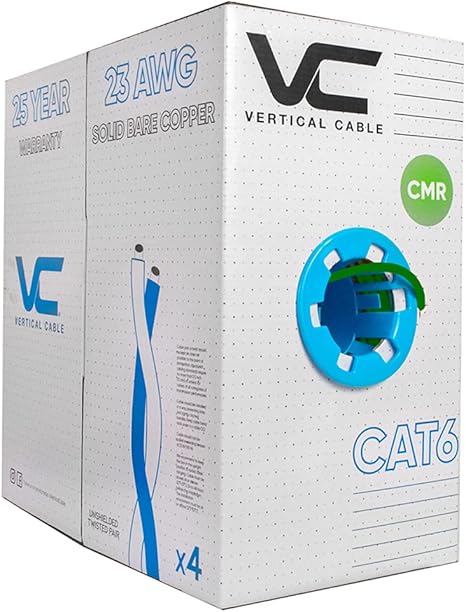

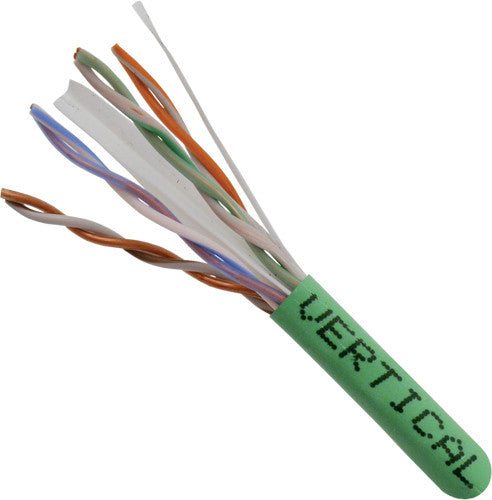

The VERTICAL CABLE 161-103/GR is a Cat 6 Ethernet cable, 23 AWG, 4-pair, unshielded, supplied in a 1000' pull box. This high-performance data cable is suitable for 550MHz high-speed applications and exceeds TIA/EIA-568-C.2 specifications. Designed for indoor and riser network installations, it is ETL approved to be type CMR.

• 23 AWG solid bare copper conductors
• 550MHz bandwidth for data applications
• Riser Rated (CMR)

Product Highlights

High-performance Cat 6 UTP cable for indoor and riser network installations, featuring 23 AWG solid bare copper conductors and a PVC jacket.

Product Information

Standard Information

• Brand: VERTICAL CABLE
• Manufacturer Part Number: 161-103/GR

Technical Specifications

• Color: GREEN
• UL Type: CMR
• Voltage: 300V
• CSA Type: CMR
• Number of Pairs: 4
• Gauge Size: 23
• Label Type: UL CSA
• Temperature: 75C
• Manufacturer: VERTICAL CABLE
• Conductor Type: SOLID
• Number of Conductors: 8
• Conductor Metal: BARE COPPER
• Jacket Material: PVC
• Specification(s): ANSI/TIA/EIA 568 C.2, NEC CMR
• Insulation Material: POE
• Overall Shielding Type: UNSHIELDED
• Conductor Configuration: CONDUCTORS AND PAIRS
• Conductor Shielding Type: UNSHIELDED
• Product Type: Cat6 Cable
• Type: Riser
• Shielding: Unshielded
• Ethernet cable category: Cat 6
• Data Transfer Rate: 550 MHz
• Frequency: 550 MHz
• Indoor/Outdoor Usage: Indoor
