Product Description

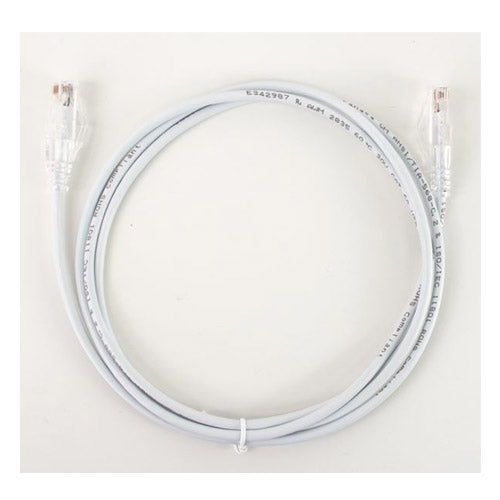

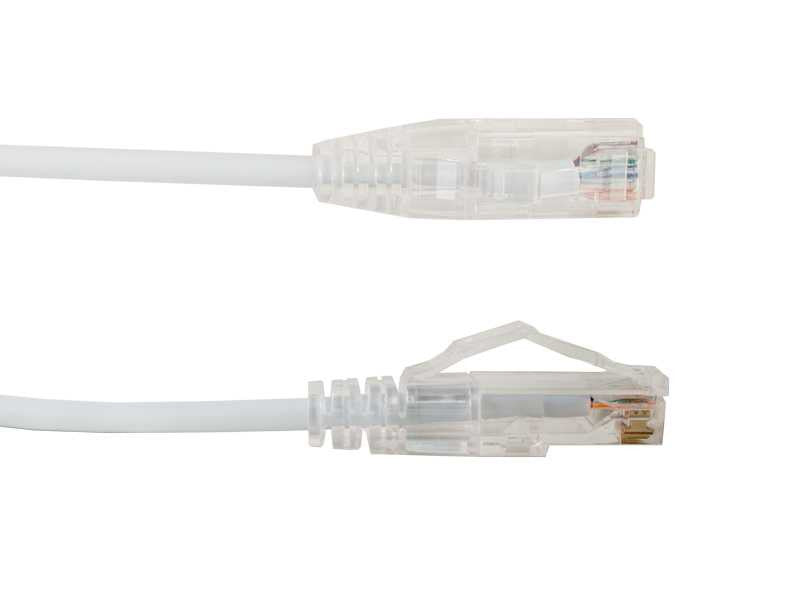

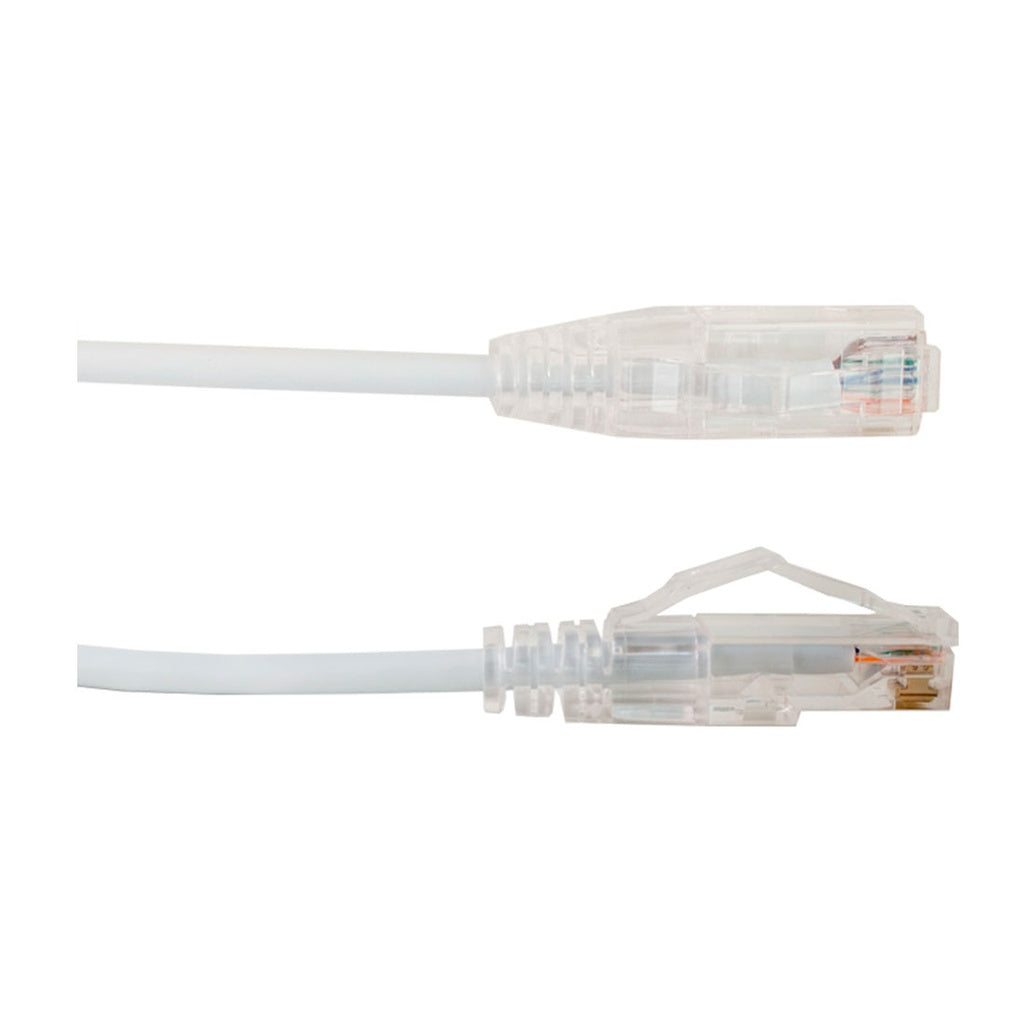

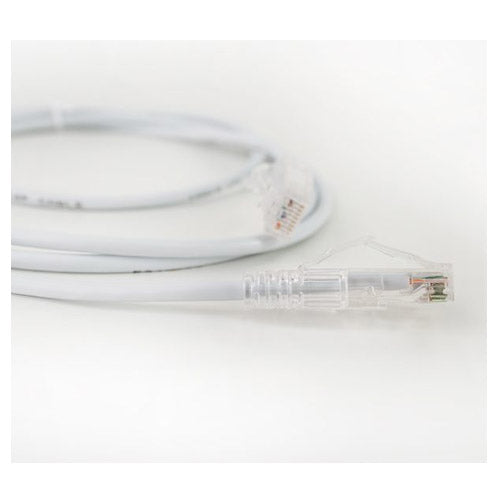

The VERTICAL CABLE 077-2080/10WH is a Category-6A Slim Type Mold-Injection-Snagless Patch Cord with a 28AWG Stranded PVC Jacket. It features unshielded RJ45 modular plugs and 8P8C gold plated pins. This patch cord supports PoE+ (Type 2) IEEE 802.3at (25.5W).
- Category-6A Slim Type Mold-Injection-Snagless Patch Cord, 28AWG Stranded, PVC Jacket
- Bare Copper Stranded Conductors
- Unshielded RJ45 Modular Plugs
Product Highlights
This Cat6A slim patch cord is ideal for high-density networking applications, offering reliable connectivity and supporting Power over Ethernet.
Product Information
Standard Information
-
Brand: VERTICAL CABLE
-
Manufacturer Part Number: 077-2080/10WH
-
Country of Origin: China
Technical Specifications
-
Type: Category-6A Slim Type Mold-Injection-Snagless Patch Cord
-
Conductors: 28AWG Stranded, Bare Copper
-
Jacket: PVC, CM Rated
-
Plugs: Unshielded RJ45 Modular Plugs
-
Pins: 8P8C Gold Plated
-
Wiring: 568B Wiring Color Code
-
Diameter: 3.8mm (Slim Type)
-
Length: 10 ft
-
Conductor Size: 28 AWG Stranded
-
Material: Bare Copper (7/0.127)
-
Connectors(RJ45): 8P/8C
-
Wiring Color Code: 568B
-
Conductor: 28AWG Stranded, Bare Copper
-
Insulation Material: high-density polyethylene (HDPE)
-
Jacket Material: Polyvinylchloride (PVC) flame-retardant
-
Jacket Diameter: 0.15 in. (3.8 mm)
-
Plugs Type: 8P8C modular plugs (RJ45)
-
Plugs Housing: Flame-retardant polycarbonate (PC) 94V-0
-
Plugs Contacts: 50-µin gold plated
-
Cable Type: Category 6A
-
Features: Gold Plated
-
Connector A: RJ45
-
Connector B: RJ45
-
Brand: Vertical Cable
-
Country of Origin: China
