Vertical Cable 077-2020/1BL Cat6A Slim Snagless Patch Cord 1 feet

Product Description

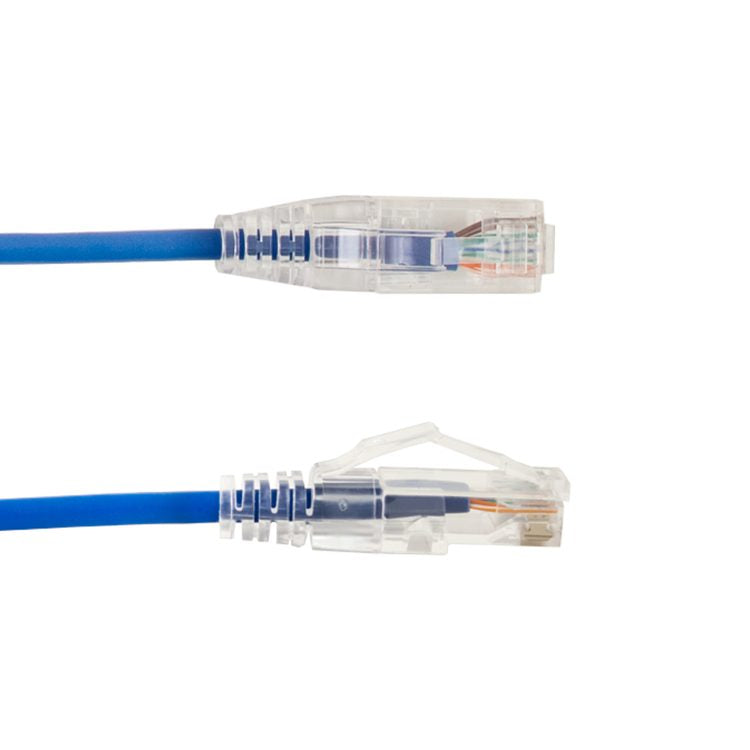

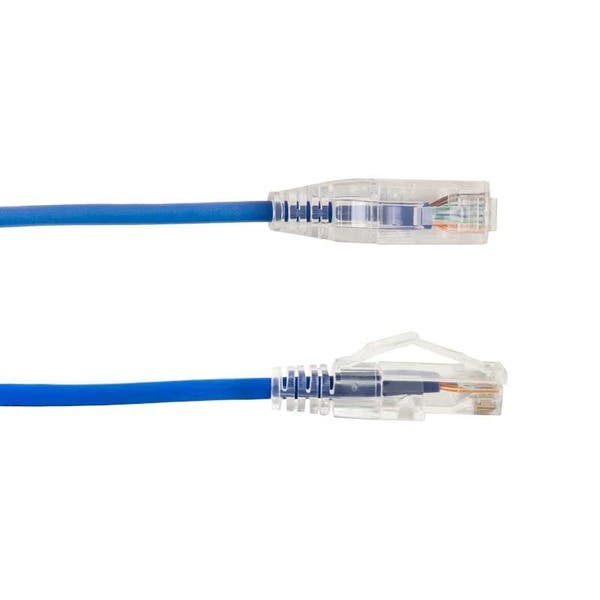

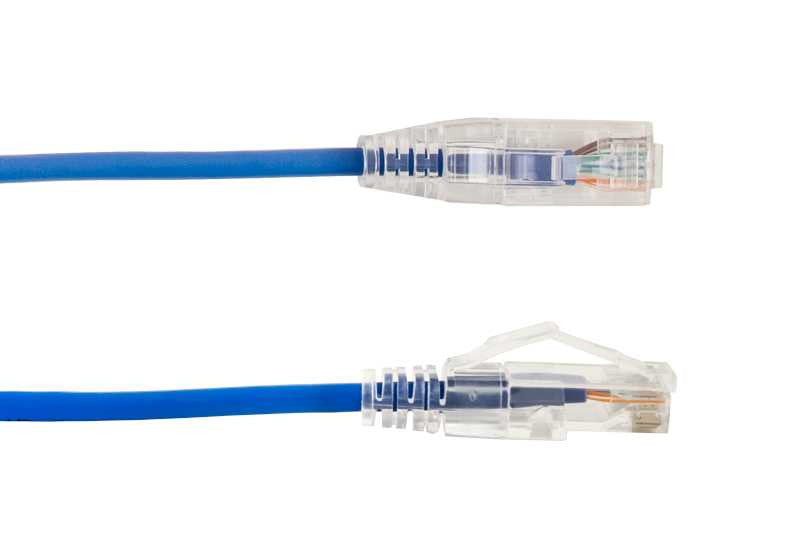

The VERTICAL CABLE 077-2020/1BL is a Category-6A slim type mold-injection-snagless patch cord featuring a 28AWG stranded PVC jacket. It utilizes bare copper stranded conductors and unshielded RJ45 modular plugs with 8P8C gold-plated pins, wired to the 568B standard. This patch cord is RoHS and UL compliant.

• Category-6A Slim Type Mold-Injection-Snagless Patch Cord, 28AWG Stranded, PVC Jacket
• Bare Copper Stranded Conductors
• Unshielded RJ45 Modular Plugs

Product Highlights

This slim, snagless patch cord is ideal for high-density network environments, improving airflow and cable management.

Product Information

Standard Information

• Brand: VERTICAL CABLE
• Manufacturer Part Number: 077-2020/1BL

Technical Specifications

• Conductors: Bare Copper Stranded
• Plugs: Unshielded RJ45 Modular
• Pins: 8P8C Gold Plated
• Wiring Color Code: 568B
• Compliance: RoHS Compliant, UL
• Jacket: PVC, CM Rated
• Diameter: 3.8mm (Slim Type)
• Length: 1 ft
• Conductor Size: Stranded 28 AWG
• Conductor Material: bare copper
• Insulation Material: high-density polyethylene (HDPE)
• Jacket Material: Polyvinylchloride (PVC) flame-retardant
• Jacket Diameter: 0.15 in. (3.8 mm)
• Plugs Type: 8P8C modular plugs (RJ45)
• Plugs Housing: Flame-retardant polycarbonate (PC) 94V-0
• Plugs Contacts: 50-µin gold plated
• Cable Type: Category 6A
• type: Mold-Injection-Snagless, Slim Booted
• series: 077
• certifications: Cm Rated, Ul Listed, Rohs Compliant
• voltage rating: 300 V
• Material: Bare Copper (7/0.127)
• Connectors(RJ45): 8P/8C
• Rating: CM Rated, UL Listed, RoHS Compliant
• Standards: Meets or Exceeds Specifications of ISO/IEC 11801 and ANSI/TIA/568.2 Standards
• Wiring Scheme: T568B
