Product Description

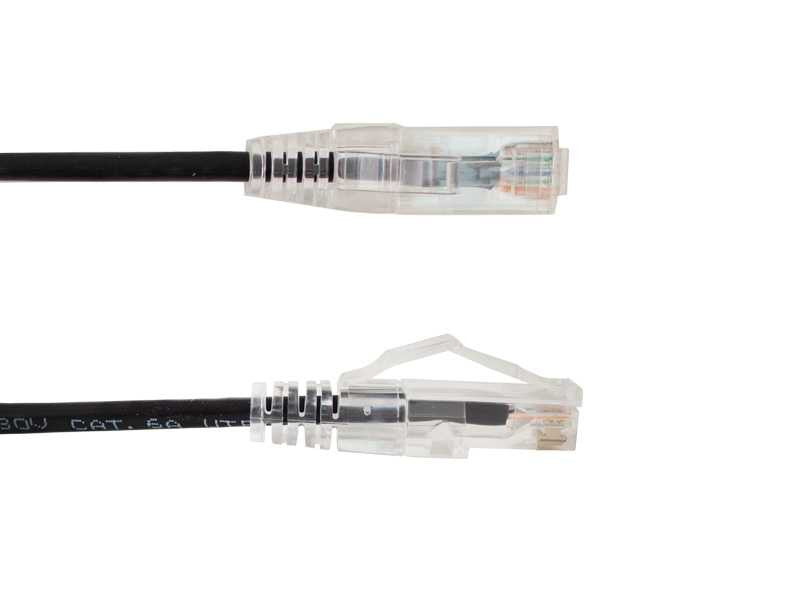

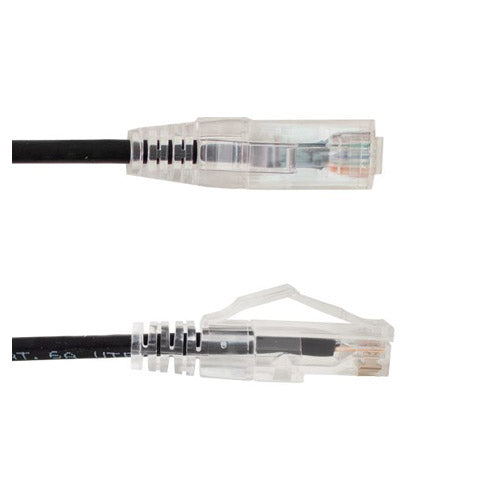

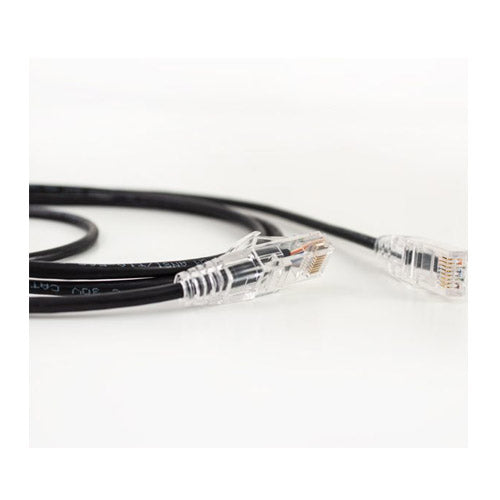

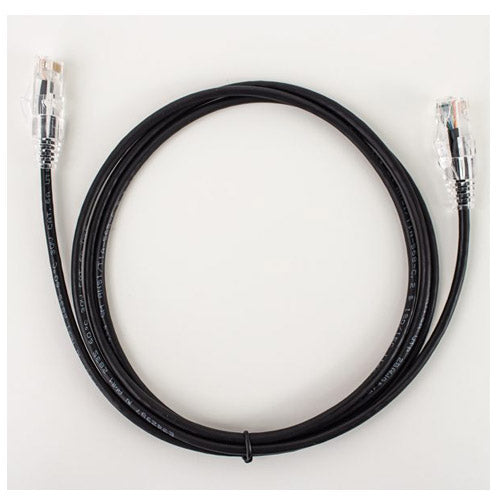

The VERTICAL CABLE 077-2019/1BK is a Category-6A slim type mold-injection-snagless patch cord with a 28AWG stranded PVC jacket. It features bare copper stranded conductors and unshielded RJ45 modular plugs with 8P8C gold plated pins. This patch cord is compliant with 568B wiring and is RoHS compliant and UL listed.
- Category-6A Slim Type Mold-Injection-Snagless Patch Cord
- 28AWG Stranded Conductors
- RoHS Compliant and UL Listed
Product Highlights
This slim, snagless patch cord supports PoE+ (Type 2) and is ideal for high-density networking applications.
Product Information
Standard Information
-
Brand: VERTICAL CABLE
-
Manufacturer Part Number: 077-2019/1BK
Technical Specifications
-
Conductors: Bare Copper Stranded
-
Plugs: Unshielded RJ45 Modular
-
Pins: 8P8C Gold Plated
-
Wiring: 568B Wiring Color Code
-
Compliance: RoHS Compliant, UL Listed
-
Jacket: PVC, CM Rated
-
Diameter: 3.8mm (Slim Type)
-
Length: 1 ft
-
Conductor Size: 28 AWG
-
Conductor Material: Bare Copper
-
Insulation Material: High-Density Polyethylene (HDPE)
-
Jacket Material: Polyvinylchloride (PVC) Flame-Retardant
-
Jacket Diameter: 0.15 in (3.8 mm)
-
Plugs Type: 8P8C Modular Plugs (RJ45)
-
Plugs Housing: Flame-Retardant Polycarbonate (PC) 94V-0
-
Plugs Contacts: 50-µin Gold Plated
-
Cable Type: Category 6A
-
Material: Bare Copper (7/0.127)
-
Connectors(RJ45): 8P/8C
-
Contacts/Pins: Gold Plated
-
Wiring Color Code: 568B
-
Type: Mold-Injection-Snagless, Slim Booted
-
Series: 077
-
Voltage Rating: 300 V
