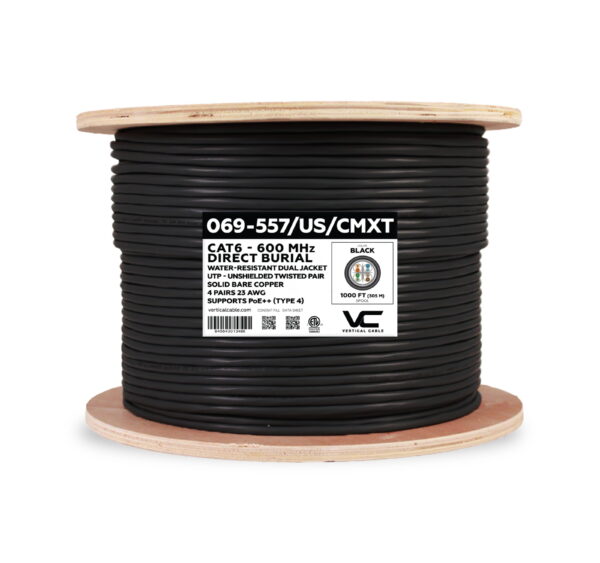

Vertical Cable 069-557/US/CMXT Cat6 Direct Burial Cable 1000 ft

Product Description

The VERTICAL CABLE 069-557/US/CMXT is a CAT 6 Direct Burial Cable for outdoor and underground installations, delivering performance without shielded terminations. This CAT6 cable features a dual-jacket construction with a PVC inner jacket and black UV-resistant LLDPE outer jacket for environmental protection. Supports Fast Ethernet, 155 Mbps TP-PMD/CDDI, and high-bandwidth applications.

• 600 MHz High-Performance Rating
• Dual-Jacket Construction
• UTP Unshielded Design

Product Highlights

Ideal for direct burial runs, outdoor security systems, wireless access points, campus networks and residential outdoor networks.

Product Information

Standard Information

• Brand: VERTICAL CABLE
• Manufacturer Part Number: 069-557/US/CMXT

Technical Specifications

• Cable Type: CAT6 Direct Burial
• Frequency: 600 MHz
• Shielding: UTP Unshielded
• Conductor Gauge: 23 AWG
• Conductor Material: Solid Bare Copper
• Inner Jacket OD: 0.23 in
• Outer Jacket OD: 0.30 in
• Outer Jacket Material: Black UV-resistant LLDPE
• Operating Temperature: -40°C to +70°C (-40°F to 158°F)
• Compliance: ANSI/TIA-568.2-D, ISO/IEC 11801, ETL Listed, RoHS compliant

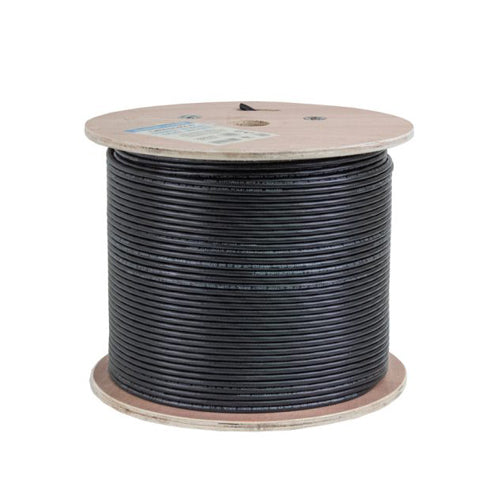

• Packaging: 1000 ft wooden spool
• Insulation: PE
• Separator: LDPE
• Assembly Diameter: 5.00mm
• Inner Jacket: PVC
• Outer Jacket: LLDPE
• Rip Cord: Yes
• Thickness: 0.009 in. (0.220 mm)
• Material: Linear Low Density Polyethylene (LLDPE)
• Tensile Strength: Before:≥10.8
• Tensile Strength After: ≥85% of unaged
• Voltage: 60 V
• Impedance: 1.0~250MHz 100±15Ω
• Pairs: 4
• Jacket Rating: CMX Outdoor

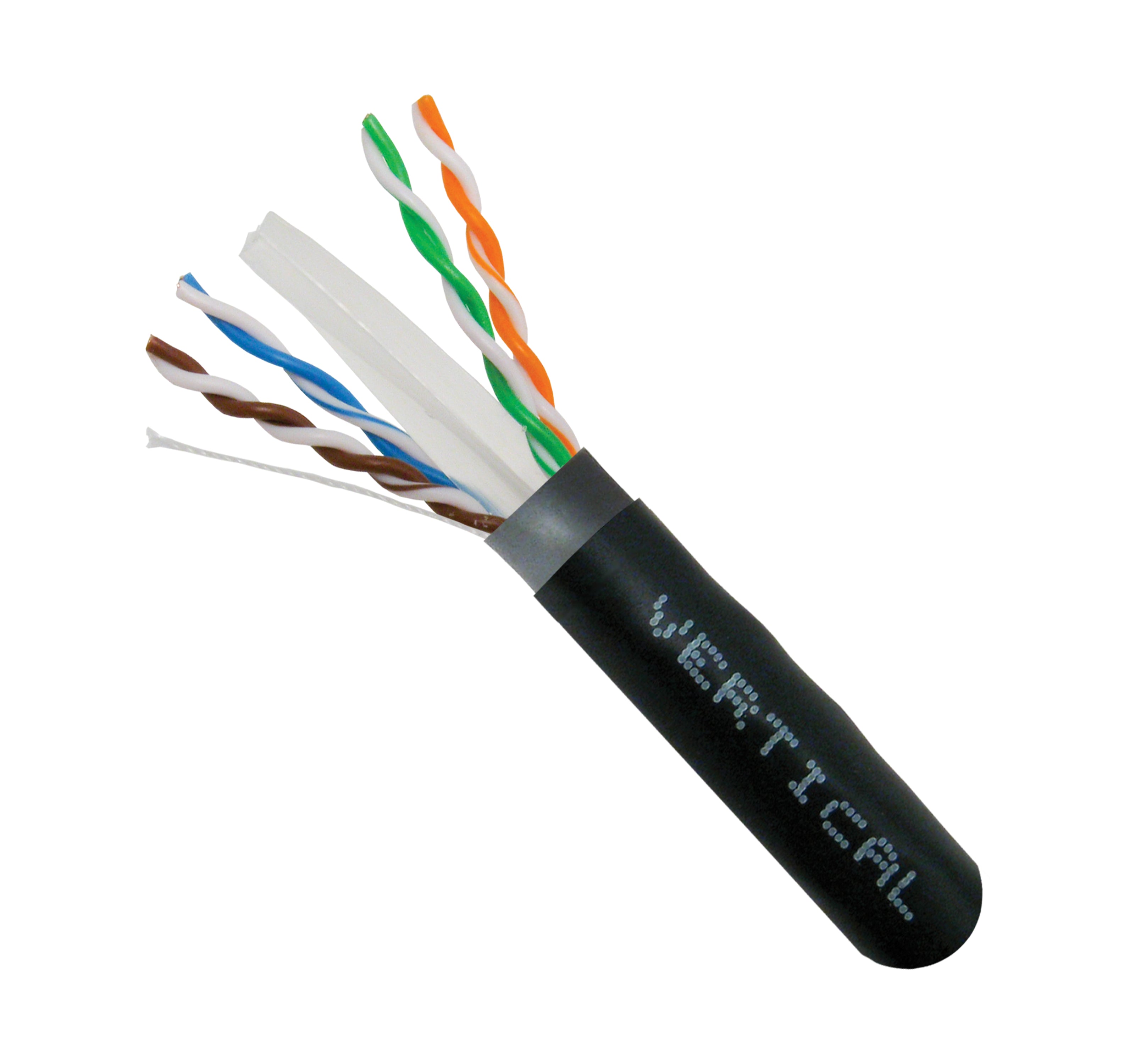

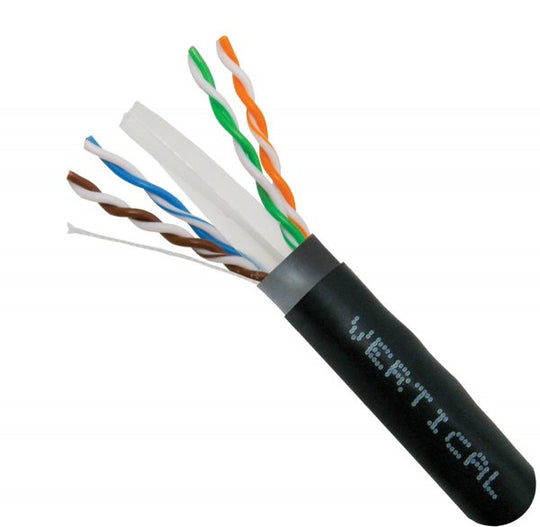

• Construction: Double Jacket
• Length: 1000 ft
• Application: Direct Burial, Outdoor, PoE++
