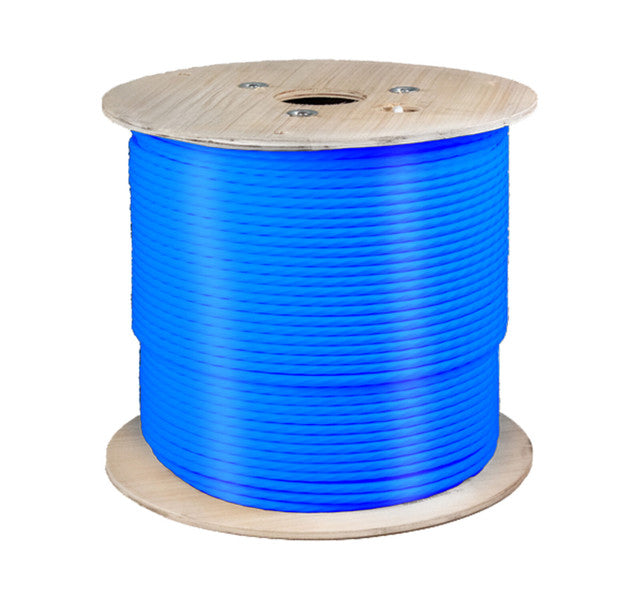

Vertical Cable 064-485/A/BL 23/8C CAT6A 10Gb UTP Solid BC Cable 1000ft Pull Box

Product Description

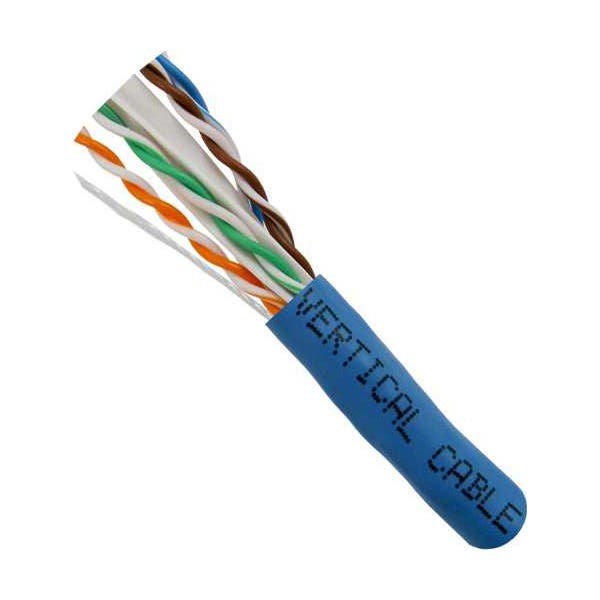

The Vertical Cable 064-485/A/BL is a 23/8C CAT6A (Augmented) 10Gb UTP solid BC cable, supplied in a 1000ft pull box. This high-performance data communications cable is designed for indoor installations and is suitable for 10Gb high-speed data applications. It features 4-pair, easily identified color-striped pairs and excellent attenuation and crosstalk characteristics.

• High-Performance Data Communications Cable
• Suitable for 10Gb High-Speed Data Applications
• Designed for Indoor Installations (CMR) Riser

Product Highlights

Category-6A UTP cable with 23AWG solid bare copper conductors, exceeding ANSI TIA/EIA 568 C.2 standards. ETL Listed and RoHS compliant.

Product Information

Standard Information

• Brand: VERTICAL CABLE
• Manufacturer Part Number: 064-485/A/BL

Technical Specifications

• Brand: Vertical Cable
• Part Number: 064-485/A/BL
• Conductor: Solid Bare Copper
• Size: 23 AWG
• Insulation: PE
• Separator: LDPE
• Assembly Diameter: 6.50
• Jacket: PVC
• Rip Cord: Yes
• Type: Bulk Cable
• Length: 1000 Foot
• Gauge: 23 Gauge
• Conductor Type: Solid bare copper
• Thickness: 0.01 in. (0.23 mm)
• Material: HDPE (high-density polyethylene)
• Jacket Marking: VERTICAL 4002107 cETLus VERIFIED CMR FT4 UTP 4PR 23AWG 10GS AUGMENTED CAT6A ANSI/TIA-568.2-D RoHS
• Voltage: 30 V
• Operating Temperature: -20 °C–70 °C
• Number of Conductors: 8
• Compliance: RoHS, ETL Listed, ANSI/TIA-568.2-D and ISO/IEC 11801
