Vertical Cable 059-484/CMX Cat 5E UV Jacket For Outdoor Use (CMX) Pull Box

Product Description

The Vertical Cable 059-484/CMX is a high-performance Category 5E data cable with a 350 MHz bandwidth, designed for outdoor use. This unshielded twisted pair cable features easily identified color-striped pairs and 24 AWG solid copper conductors. It exceeds TIA/EIA 568B.2 and ISO/IEC 11801 standards and comes in a 1,000 ft pull box.

• Features a UV-resistant PVC jacket for outdoor durability.
• Made with 24 AWG solid bare copper conductors.
• ETL listed and RoHS compliant.

Product Highlights

This Category 5E cable is ideal for outdoor Ethernet networks, IP cameras, and security systems.

Product Information

Standard Information

• Brand: VERTICAL CABLE
• Manufacturer Part Number: 059-484/CMX

Technical Specifications

• Brand: Vertical Cable
• Gauge: 24 ga
• Description: 059-484/CMX, Cat 5E UV Jacket For Outdoor Use (CMX) Black Pull Box
• Jacket Type: PVC(UV)
• Cable Rating: CMX
• Package Type: Pull Box
• Diameter: 5.10+/- .1 mm
• Center Conductor: Solid Bare Copper
• Cable Length: 1000 in
• Manufacturers Part Number: 059-484/CMX
• Certifications: ETL
• Cable Type: CAT5E UTP (Unshielded Twisted Pair)
• Frequency Rating: Supports up to 350 MHz
• Conductor: 24 AWG solid bare annealed copper

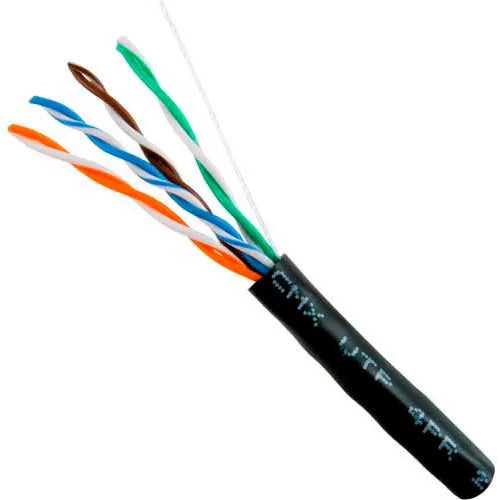

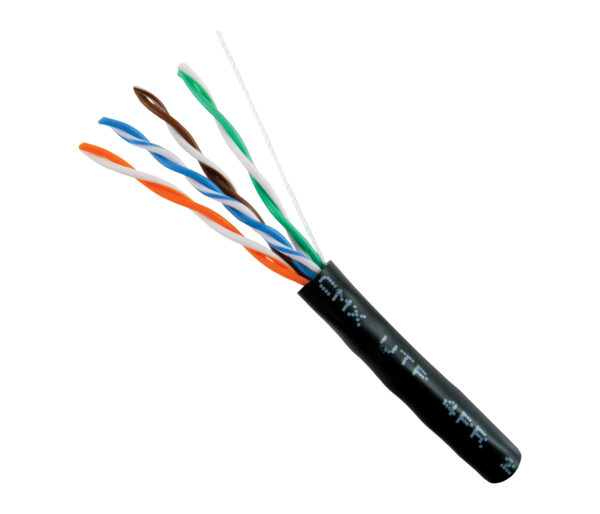

• Pair Configuration: 4 twisted pairs (8 conductors), color-coded
• Insulation: PE insulation with a diameter of 0.04″ (0.91 mm)
• Jacket Material: Linear Low-Density Polyethylene (LLDPE)
• UV Resistance: Outdoor-rated jacket
• Outer Diameter: 0.20″ (5.10 mm)
• Rip Cord: Included
• Markings: CMX rating with ANSI/TIA-568.2-D and RoHS compliance

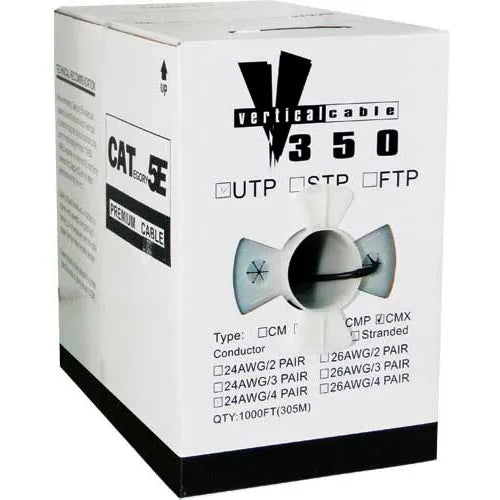

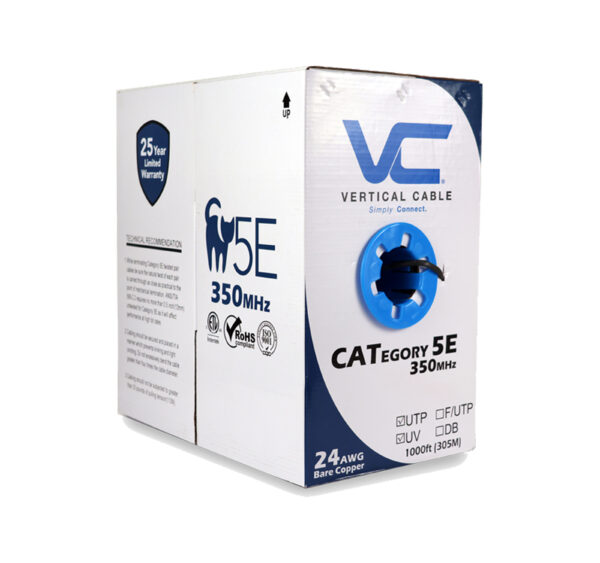

• Packaging: Supplied in a 1000 ft (304.8 m) pull box
• Performance: Exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 standards for CAT5E cable
• Bandwidth: 350MHz
• Pairs: Easily Identified Color-Striped Pairs
• Standards: Exceeds TIA/EIA-568C.2, ISO/IEC 11801
• CSA: CAN/CSA -C22.2 No. 214
• Suitable for: 10/100/1000Base-T
