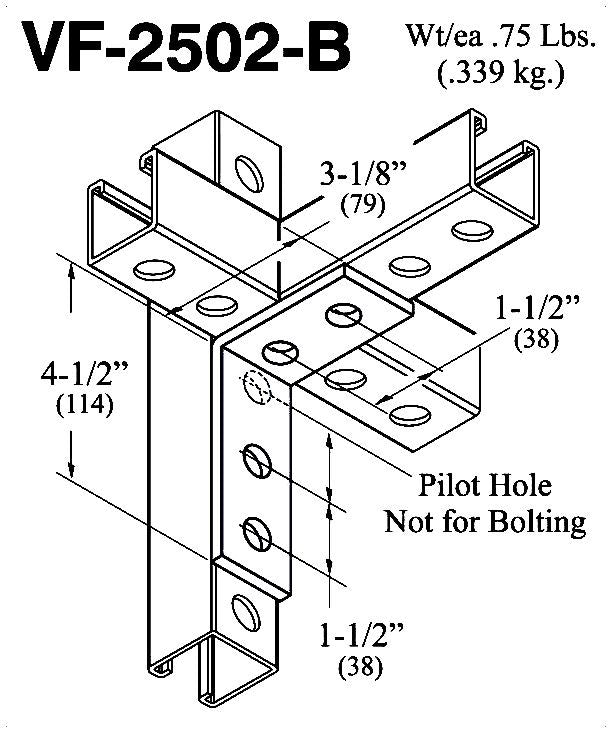

Versabar VF-2502-B 5-hole 90 Degree Corner Bracket

Product Description

The VERSABAR VF-2502-B is a 5-hole right-hand 90-degree corner bracket designed for structural support applications in mechanical, electrical, and plumbing installations. This bracket provides a rigid perpendicular connection point where two runs of strut channel meet at a right angle. The right-hand orientation positions the mounting holes for standard right-side assembly configurations. Weighing 0.75 pounds, it is a compact and durable hardware component used by trade professionals to anchor, brace, and route mechanical systems through commercial and residential structures.

This corner bracket is suited for use in HVAC duct support systems, conduit runs, pipe hangers, and general strut channel framing assemblies. It is typically installed where a 90-degree directional change is required in a support grid or where additional bracing is needed at a corner junction. Licensed mechanical, electrical, and plumbing contractors regularly use this type of bracket as part of overhead or wall-mounted strut channel systems.

Key Features

• 90-degree right-angle corner configuration for perpendicular strut connections
• Right-hand orientation for standard right-side assembly
• 5-hole pattern provides multiple fastening points for secure mounting
• Lightweight at 0.75 pounds for easy handling during overhead installation

Compatibility

Designed as an OEM-style fitting for use with standard strut channel systems in mechanical, electrical, and plumbing support applications.

Installation Notes

Installation is typically performed by licensed mechanical, electrical, or plumbing contractors as part of a strut channel support assembly. Shut down and de-energize any nearby electrical systems before working in the installation area. Fasten using appropriate hardware for the strut channel profile being used, and verify that the assembly meets local building code and load requirements before completing the installation.

Technical Specifications

• Hole Count: 5
• Corner Angle: 90 degrees
• Orientation: Right-hand
• Weight: 0.75 pounds
• UPC: 78649142502

Standard Information

• Brand: VERSABAR
• Manufacturer Part Number: VF-2502-B
