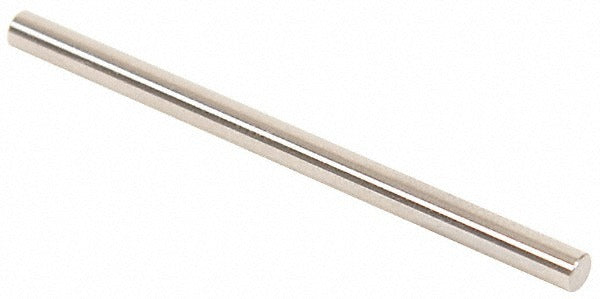

Vermont Gage 111114000 Class Zz Plus Plug Gage 0.14 in

Product Description

The VERMONT GAGE 111114000 is a Class ZZ Plus plug gage designed for precision measurement and go inspection applications. Machined from tool steel and finished to a 10 microfinish surface, this gage measures a nominal diameter of 0.14 inches with a tolerance of 0.0002 inches. It ships with a Certificate of Accuracy traceable to NIST, confirming it meets ASME B89.1 standards. Machinists, quality technicians, and metrologists rely on this type of gage for verifying bore diameters and qualifying measuring instruments such as micrometers and verniers.

This plug gage is suited for go inspection tasks in manufacturing and quality control environments. It is used to verify that a hole or bore meets minimum size requirements, ensuring parts fall within acceptable tolerances before assembly. Compatible applications include setting micrometers, verniers, and other precision measuring devices. At 0.14 inches in diameter and 2.0 inches in overall length, it fits standard plug gage handles used in light-tolerance inspection work across precision machining and metrology labs.

Key Features

• Class ZZ Plus tolerance rating with 0.0002 inch tolerance for precision go inspection
• 10 microfinish surface for consistent, accurate contact during measurement
• Tool steel construction for durability and dimensional stability
• Includes Certificate of Accuracy with NIST traceability
• Compliant with ASME B89.1 dimensional gage standards
• Compact 2.0 inch overall length suitable for standard gage handle use

Compatibility

Designed for go inspection of 0.14 inch diameter bores and for setting micrometers, verniers, and other precision measuring devices as stated in the product application data.

Installation Notes

Plug gages are handled and used by quality technicians and machinists in controlled metrology environments. Keep the gage clean and lightly oiled when not in use to prevent corrosion of the tool steel surface. Do not force the gage into a bore; apply only light, consistent hand pressure to avoid measurement error or gage damage. Store in the provided case or a dedicated gage block tray to protect the lapped surface finish.
